L Series Series

Rocker Switches L24E3S001AZZ00000 Miniature Slide Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Rocker Switches L24E3S001AZZ00000 Miniature Slide Switch

Part	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Actuator Type	Current Rating (Amps)	Contact Material	Actuator Material	Actuator Length [z]	Switch Function	Electrical Life	Contact Timing	Circuit	Contact Finish	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Length [x]	Features
Littelfuse/Commercial Vehicle Products L202121SS03Q	28 V	125 V	Solder Lug	Screwdriver Slot	4 A	Copper	Nylon 6/6 Polyamide (PA66)	1.65 mm	On-On	10000 Cycles	Not Specified	DPDT	Silver	3.81 mm	65 °C	-30 ░C

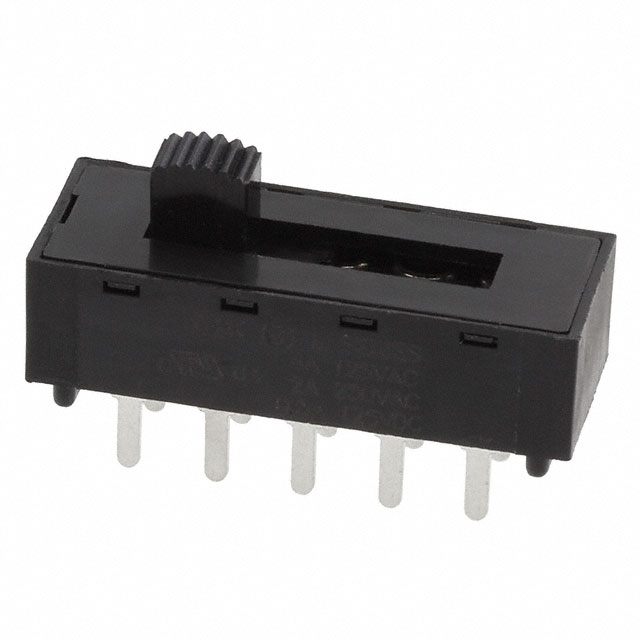

Littelfuse/Commercial Vehicle Products L204011MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On-On	10000 Cycles	Not Specified	DP4T	Silver	4.32 mm	65 °C	-30 ░C	Through Hole	5.08 mm
Littelfuse/Commercial Vehicle Products L204031MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On-On	10000 Cycles	Not Specified	DP4T	Silver	4.32 mm	65 °C	-30 ░C	Through Hole	9.53 mm
Littelfuse/Commercial Vehicle Products L202011MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On	10000 Cycles	Not Specified	DPDT	Silver	3.81 mm	65 °C	-30 ░C	Through Hole	5.08 mm
Littelfuse/Commercial Vehicle Products L204021MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On-On	10000 Cycles	Not Specified	DP4T	Silver	4.32 mm	65 °C	-30 ░C	Through Hole	8.51 mm

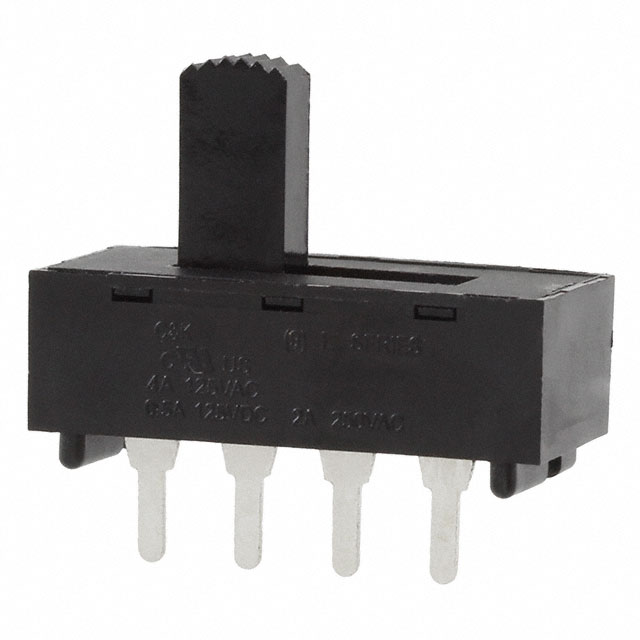

Littelfuse/Commercial Vehicle Products L103031MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On	10000 Cycles	Not Specified	SP3T	Silver	4.06 mm	65 °C	-30 ░C	Through Hole	9.53 mm
Littelfuse/Commercial Vehicle Products L102021ML04G	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On	10000 Cycles	Not Specified	SPDT	Gold	3.56 mm	65 °C	-30 ░C	Through Hole Right Angle	8.51 mm
Littelfuse/Commercial Vehicle Products L102121SS03B	20 V	20 V	Solder Lug	Screwdriver Slot	0.4 VA	Copper	Nylon 6/6 Polyamide (PA66)	1.65 mm	On-On	10000 Cycles	Not Specified	SPDT	Gold	3.81 mm	65 °C	-30 ░C
Littelfuse/Commercial Vehicle Products L203111MS02Q	28 V	125 V	PC Pin	Standard	4 A	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On	10000 Cycles	Not Specified	DP3T	Silver	3.81 mm	65 °C	-30 ░C	Through Hole	2.52 mm
Littelfuse/Commercial Vehicle Products L203011MS02BE	20 V	20 V	PC Pin	Standard	0.4 VA	Copper	Nylon 6/6 Polyamide (PA66)		On-On-On	10000 Cycles	Not Specified	DP3T	Gold	4.06 mm	65 °C	-30 ░C	Through Hole	5.08 mm	Epoxy Sealed Terminals

Catalog

Rocker Switches L24E3S001AZZ00000 Miniature Slide Switch

Key Features

• Positive detent

• Enclosed housing

• Maintained and momentary functions

• PC and panel mounting

Description

Those designing communications equipment and lighting devices turn to the L series miniature slide switch from C&K. L series switches feature positive detent, enclosed housing and your choice of maintained or momentary functions and PC or panel mounting.
