GSM60A48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

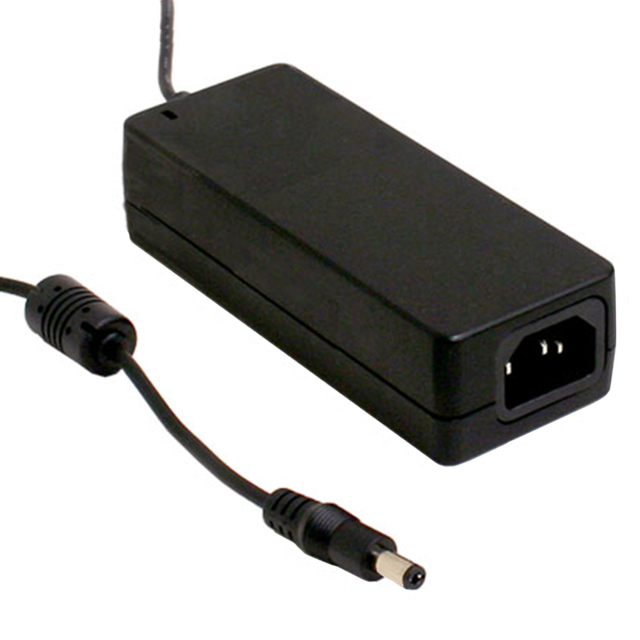

AC/DC DESKTOP ADAPTER 48V 60W
| Part | Approval Agency | Input Type | Voltage - Output | Output Connector [x] | Output Connector [diameter] | Output Connector | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Input Connector | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Region Utilized | Cord Length | Cord Length | Current - Output (Max) [Max] | Form | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CB CE cRUus TUV | Cord (Sold Separately) | 48 V | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | Positive Center | -30 ░C | 70 °C | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | Medical | IEC 320-C14 | Level VI | 80 VAC | 264 VAC | 60 W | International | 1.5 m | 59 in | 1.25 A | Desktop (Class I) | 100 mW |
