ERZ-C32 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

ERZC TYPE CK UL CSA RECOGNZD DSK ZNR TAB ROHS COMPLIANT: YES

Part	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Number of Circuits	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [diameter]	Varistor Voltage (Min) [Min]	Capacitance @ Frequency	Mounting Type	Energy	Maximum DC Volts	Maximum AC Volts	Features

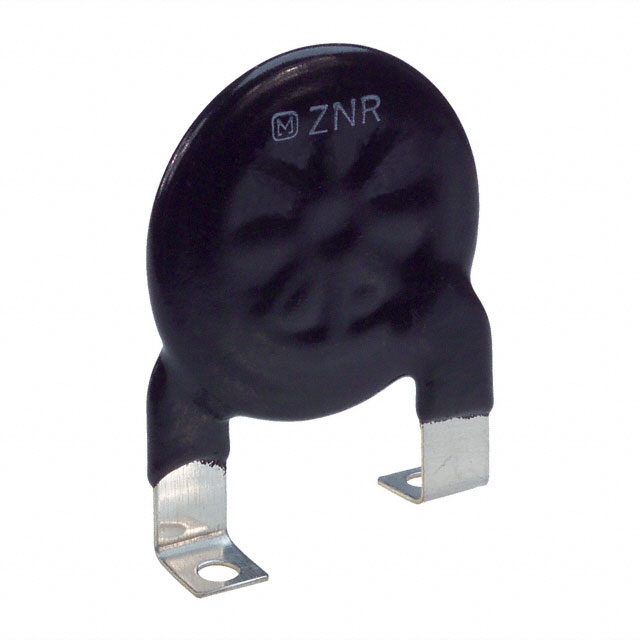

Panasonic Industrial Automation Sales ERZ-C32CK241W	264 V	150 V	1	200 V	240 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	216 V	5000 pF	Chassis Mount	240 J

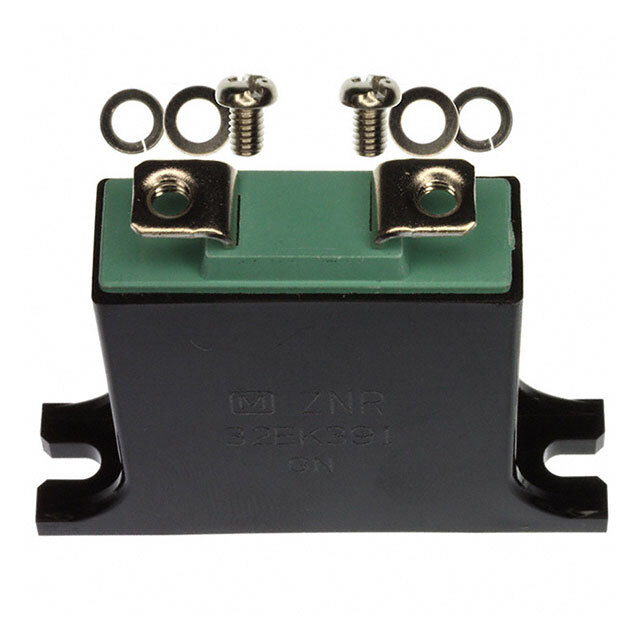

Panasonic Industrial Automation Sales ERZ-C32EK201Y	225 V	130 V	1	170 V	200 V	85 °C	-40 °C	Module		185 V	5500 pF	Chassis Mount	210 J
Panasonic Industrial Automation Sales ERZ-C32CK431W	473 V	275 V	1	350 V	430 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	387 V	2500 pF	Chassis Mount	400 J
Panasonic Industrial Automation Sales ERZ-C32CK821W	902 V	510 V	1		820 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	738 V	1800 pF	Chassis Mount	545 J	670 V
Panasonic Industrial Automation Sales ERZ-C32CK621W			1	505 V	620 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	558 V		Chassis Mount	415 J		385 V
Panasonic Industrial Automation Sales ERZ-C32CK201W	225 V	130 V	1	170 V	200 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	185 V	5500 pF	Chassis Mount	210 J
Panasonic Industrial Automation Sales ERZ-C32CK681W	748 V	420 V	1	560 V	680 V	85 °C	-40 °C	Disc Formed Tabs	32 mm	612 V	2100 pF	Chassis Mount	450 J
Panasonic Industrial Automation Sales ERZ-C32EK511Y	561 V	320 V	1	415 V	510 V	85 °C	-40 °C	Module		459 V	2400 pF	Chassis Mount
Panasonic Industrial Automation Sales ERZ-C32CK511W	561 V	320 V	1	415 V	510 V	125 °C	-40 °C	Disc Formed Tabs	32 mm	459 V		Chassis Mount				Thermally Protected
Panasonic Industrial Automation Sales ERZ-C32EK471Y	517 V		1	385 V	470 V	85 °C	-40 °C	Module		423 V	2500 pF	Chassis Mount			300 V
