8609348731 Series

Catalog

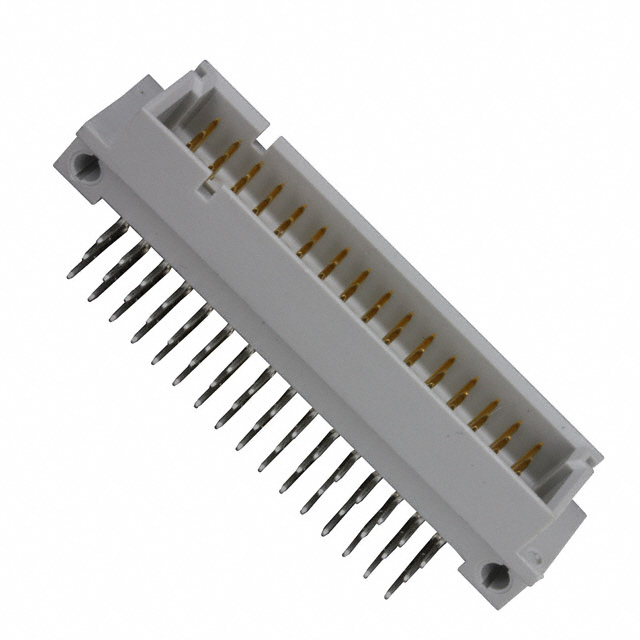

CONN DIN HDR 48POS PCB RA GOLD

Part	Material - Insulation	Number of Positions	Number of Positions Loaded	Connector Type	Mounting Type	Current Rating (Amps)	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows	Style	Style	Termination	Level, Class	Pitch [x]	Pitch [x]
Amphenol ICC (FCI) 86093487313H65E1LF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder	1	2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313H55PRLF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder		2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313H45000E1	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder	3	2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313785ELF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder		2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313765E1LF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder	1	2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313H65000E1	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder	1	2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313H55BWLF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder		2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313765BBLF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3			Solder	1	2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313755E1LF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3	C/2	1/2 C	Solder		2.54 mm	0.1 in
Amphenol ICC (FCI) 86093487313755AYLF	Polyester Thermoplastic	48	All	Header Male Pins	Through Hole Right Angle	1.5 A	Gold	-55 °C	125 °C	UL94 V-0	3			Solder		2.54 mm	0.1 in
