AMP Twin-Leaf Series
Standard Card Edge Connectors TYPE B 125P RA CARD
Manufacturer: TE Connectivity AMP Connectors
Catalog
Standard Card Edge Connectors TYPE B 125P RA CARD
Beta
⌘K
Standard Card Edge Connectors TYPE B 125P RA CARD
Standard Card Edge Connectors TYPE B 125P RA CARD
Standard Card Edge Connectors TYPE B 125P RA CARD
| Part | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material | Contact Termination | Contact Finish | Pitch | Pitch | Card Type | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Mounting Type | Material - Insulation | Number of Positions | Color | Features | For Use With/Related Products | Tool Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

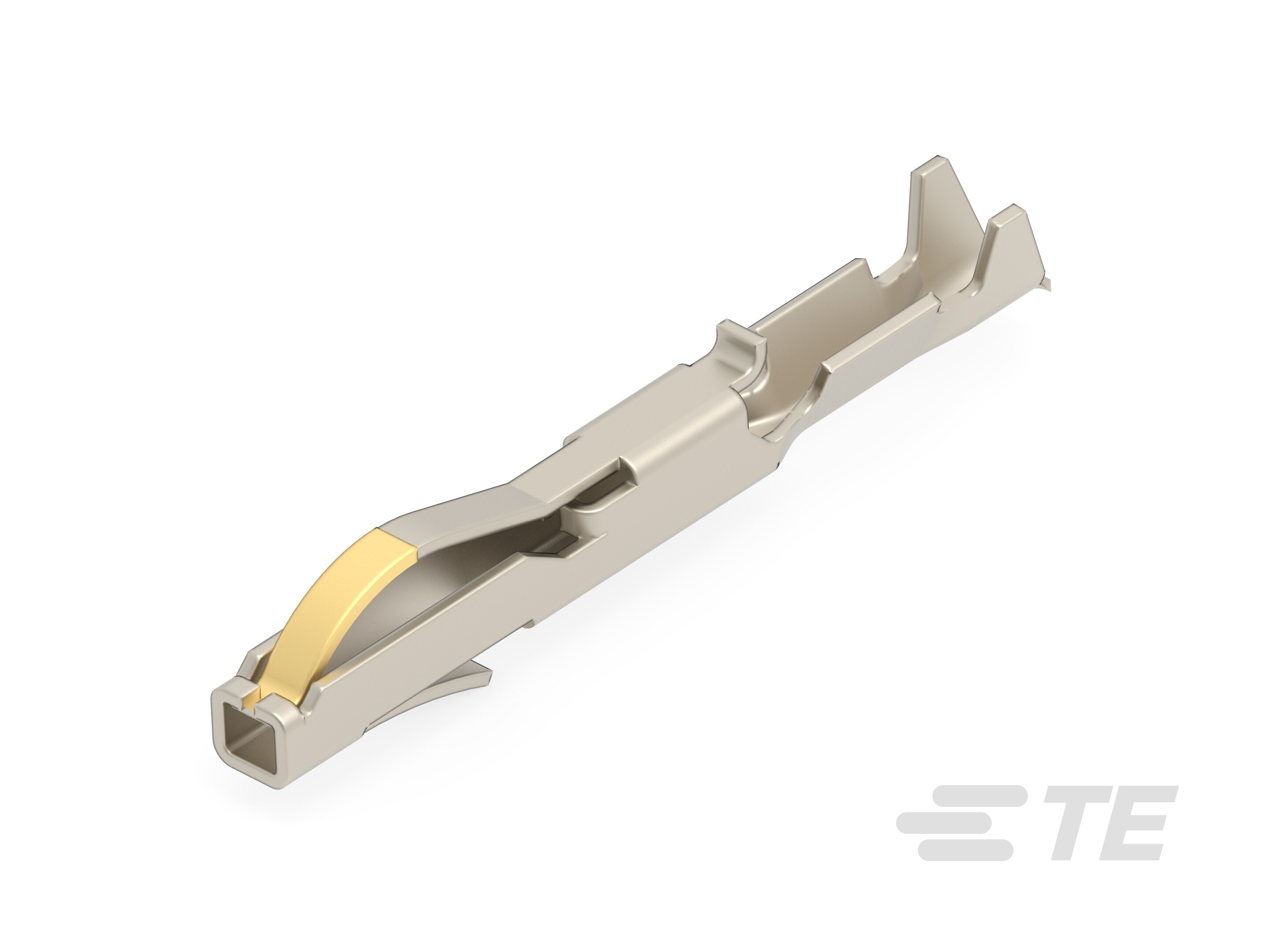

 TE Connectivity AMP Connectors | 0.38 µm | 15 µin | Non-Gendered | 24 AWG | 28 AWG | Phosphor Bronze | Crimp | Gold | ||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | 3.25 mm | 0.128 " | Panel Mount | Polyester Thermoplastic Glass Filled | 60 | Black | Flange | ||||||||||||||

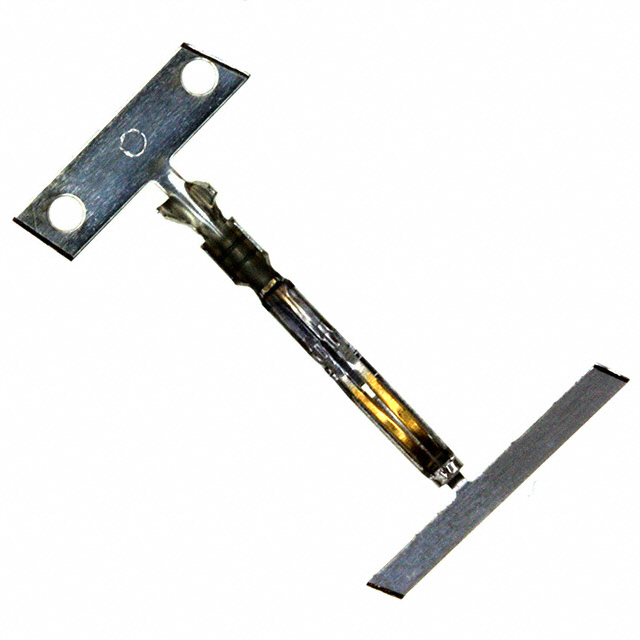

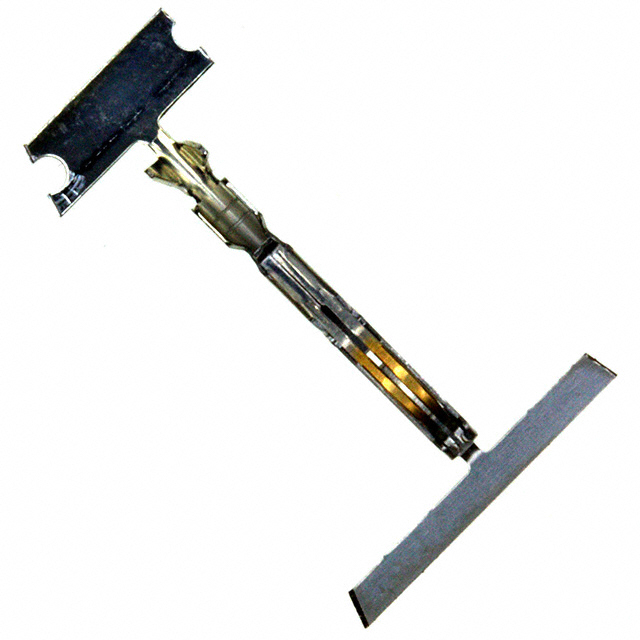

 TE Connectivity AMP Connectors | 0.38 µm | 15 µin | Non-Gendered | 19.5 AWG | 24 AWG | Phosphor Bronze | Crimp | Gold | ||||||||||||||||||||
 TE Connectivity AMP Connectors | Edge Connector Contacts | Extraction Tool | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | 3.25 mm | 0.128 " | Panel Mount | Polyester Thermoplastic Glass Filled | 100 | Black | Flange | ||||||||||||||
TE Connectivity AMP Connectors | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | 3.25 mm | 0.128 " | Panel Mount | Polyester Thermoplastic Glass Filled | 50 | Black | Flange | ||||||||||||||
 TE Connectivity AMP Connectors | 0.76 Ám | 30 Áin | Non-Gendered | 19.5 AWG | 24 AWG | Phosphor Bronze | Crimp | Gold | ||||||||||||||||||||
TE Connectivity AMP Connectors | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 1.4 mm | 0.07 in | 1.78 mm | 0.055 in | 3.25 mm | 0.128 " | Panel Mount | Polyester Thermoplastic Glass Filled | 80 | Black | Flange | UL94 V-0 | 85 °C | -40 C | Contacts Not Included | ||||||||||
 TE Connectivity AMP Connectors | 0.76 Ám | 30 Áin | Non-Gendered | 17.5 AWG | 22 AWG | Phosphor Bronze | Crimp | Gold | ||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.76 Ám | 30 Áin | Non-Gendered | 17.5 AWG | 22 AWG | Phosphor Bronze | Crimp | Gold |
