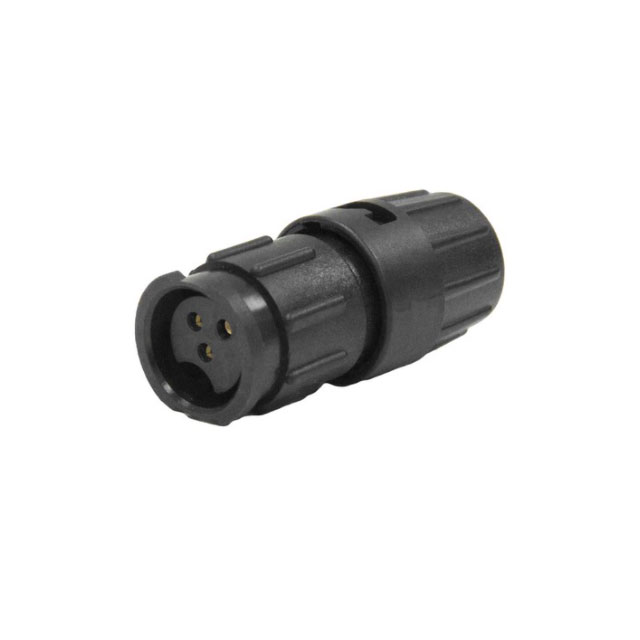

W8382-3 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MINI-CON-X INSTA-CLICK CONNECTOR
| Part | Features | Ingress Protection | Contact Finish - Mating | Mounting Type | Shielding | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Contact Material | Connector Type | Applications | Fastening Type | Current Rating (Amps) | Voltage Rating | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Color | Insert Material | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Backshell Coupling Nut UV Resistant | IP66 IP67 IP68 | Gold | Free Hanging (In-Line) | Unshielded | 3.81 mm | 0.15 " | 4.32 mm | 0.17 in | Copper Alloy | Plug Female Sockets | Automotive Communication Systems Instrumentation | Bayonet Lock | Varies by Wire Gauge | 300 VAC | Keyed | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | Black | Thermoplastic | Thermoplastic |
