281739 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Fastening Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Style	Number of Rows	Shrouding	Insulation Material	Contact Material	Insulation Height [z]	Insulation Height [z]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Connector Type	Mounting Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Termination	Number of Positions	Contact Finish - Post
TE Connectivity Raychem Cable Protection 2-281739-0	Friction Lock	UL94 V-0	7 mm	0.276 in	Board to Cable/Wire	2	Shrouded - 2 Wall	Thermoplastic	Phosphor Bronze	0.449 in	11.4 mm	General Purpose	100 °C	-40 °C	0.114 in	2.9 mm	Male Pin	Square	0.1 in	2.54 mm	12.5 mm	0.492 in	Header	Through Hole	All	2.54 mm	0.1 in	Blue	Solder	40	Tin

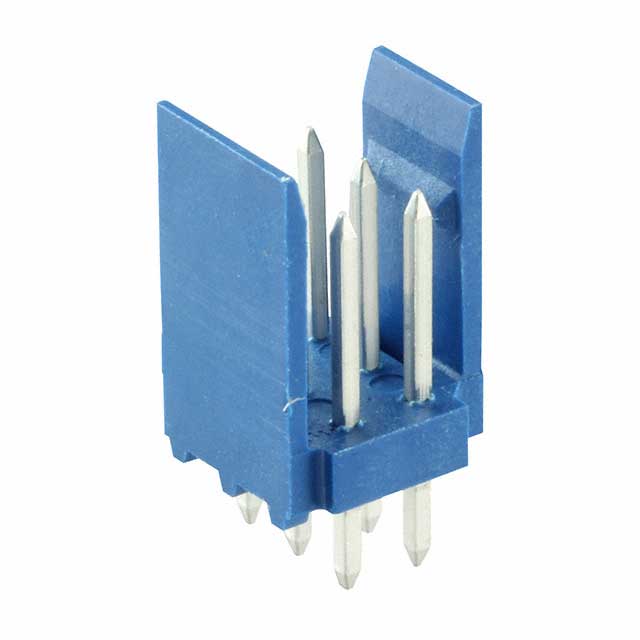

TE Connectivity Raychem Cable Protection 281739-3	Friction Lock	UL94 V-0	7 mm	0.276 in	Board to Cable/Wire	2	Shrouded - 2 Wall	Thermoplastic	Phosphor Bronze	0.449 in	11.4 mm	General Purpose	100 °C	-40 °C	0.114 in	2.9 mm	Male Pin	Square	0.1 in	2.54 mm	12.5 mm	0.492 in	Header	Through Hole	All	2.54 mm	0.1 in	Blue	Solder	6	Tin
TE Connectivity Raychem Cable Protection 1-281739-5	Friction Lock	UL94 V-0	7 mm	0.276 in	Board to Cable/Wire	2	Shrouded - 2 Wall	Thermoplastic	Phosphor Bronze	0.449 in	11.4 mm	General Purpose	100 °C	-40 °C	0.114 in	2.9 mm	Male Pin	Square	0.1 in	2.54 mm	12.5 mm	0.492 in	Header	Through Hole	All	2.54 mm	0.1 in	Blue	Solder	30	Tin
TE Connectivity Raychem Cable Protection 281739-4	Friction Lock	UL94 V-0	7 mm	0.276 in	Board to Cable/Wire	2	Shrouded - 2 Wall	Thermoplastic	Phosphor Bronze	0.449 in	11.4 mm	General Purpose	100 °C	-40 °C	0.114 in	2.9 mm	Male Pin	Square	0.1 in	2.54 mm	12.5 mm	0.492 in	Header	Through Hole	All	2.54 mm	0.1 in	Blue	Solder	8	Tin
TE Connectivity Raychem Cable Protection 281739-2	Friction Lock	UL94 V-0	7 mm	0.276 in	Board to Cable/Wire	2	Shrouded - 2 Wall	Thermoplastic	Phosphor Bronze	0.449 in	11.4 mm	General Purpose	100 °C	-40 °C	0.114 in	2.9 mm	Male Pin	Square	0.1 in	2.54 mm	12.5 mm	0.492 in	Header	Through Hole	All	2.54 mm	0.1 in	Blue	Solder	4	Tin
