160914 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

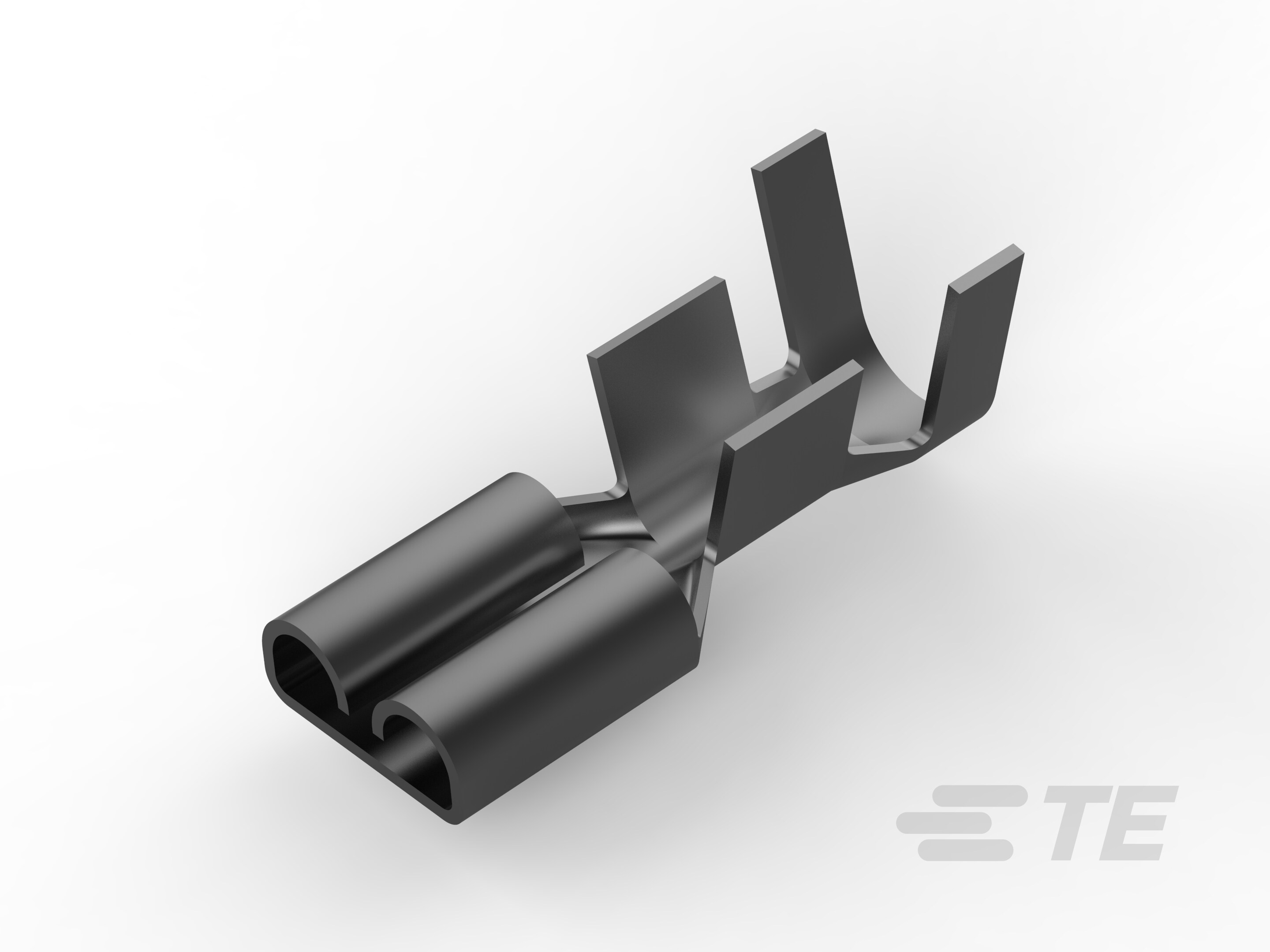

QUICK DISCONNECT TERMINAL 10-11AWG PHOSPHOR BRONZE F 19.2MM TIN REEL/STRIP
| Part | Tab Width | Tab Width | Tab Length | Tab Length | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Gender | Termination | Terminal Type | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Insulation | Mounting Type | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6.35 mm | 0.25 in | 7.75 mm | 0.305 in | 0.205 in 5.21 mm | 0.157 in 3.99 mm | Female | Crimp | Standard | 0.756 in | 19.2 mm | 0.032 in | 0.81 mm | 11 AWG | 10 AWG | Non-Insulated | Free Hanging (In-Line) | Phosphor Bronze | Tin |
