845-063 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 63POS 0.100
| Part | Termination Rows | Material - Insulation | Termination | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Card Type | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

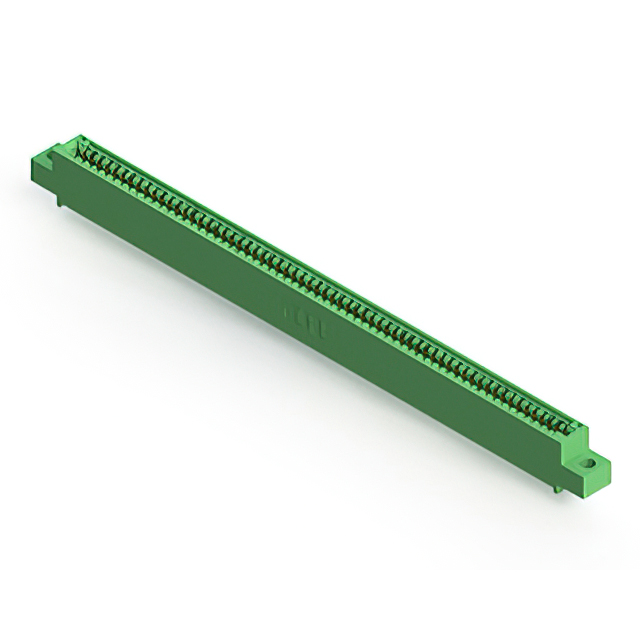

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | 0.156 " | 3.96 mm | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |

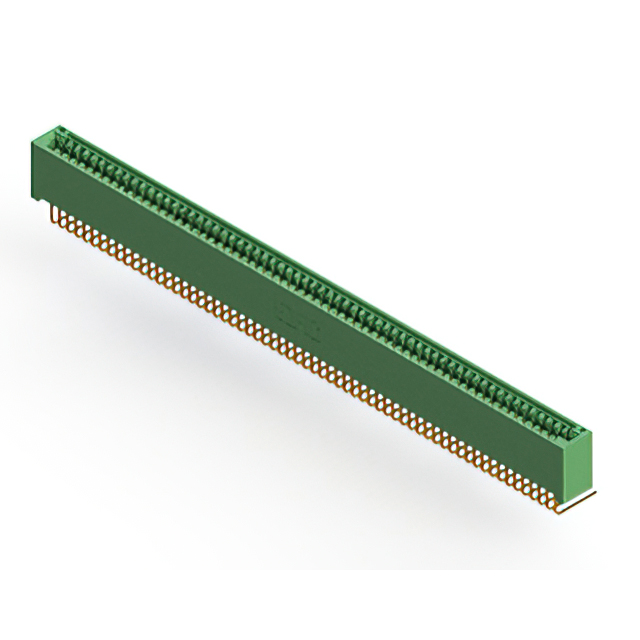

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | Female | Right Angle Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | 1 | Copper Alloy | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | 1 | Copper Alloy | 0.128 " | 3.25 mm | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | 0.156 " | 3.96 mm | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | 1 | Copper Alloy | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | 0.128 " | 3.25 mm | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Wire Wrap | 1 | Copper Alloy | Female | Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | 0.128 " | 3.25 mm | Female | Right Angle Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder | 1 | Copper Alloy | Female | Right Angle Through Hole | Green | 0.25 Ám | 10 Áin | 63 | 0.1 " | 2.54 mm | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 63 | Single | 125 °C | -40 C | Cantilever | Non Specified - Single Edge | Gold | M3 Threaded Insert Top Mount Opening |
