055932 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 13POS 2MM

Part	Contact Shape	Insulation Color	Insulation Height	Insulation Height	Number of Positions Loaded	Termination	Applications	Contact Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Connector Type	Style	Contact Length - Post	Contact Length - Post [x]	Number of Rows	Mated Stacking Heights	Mounting Type	Shrouding	Fastening Type	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Overall Contact Length	Overall Contact Length	Features
Molex 0559321330	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	13	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in

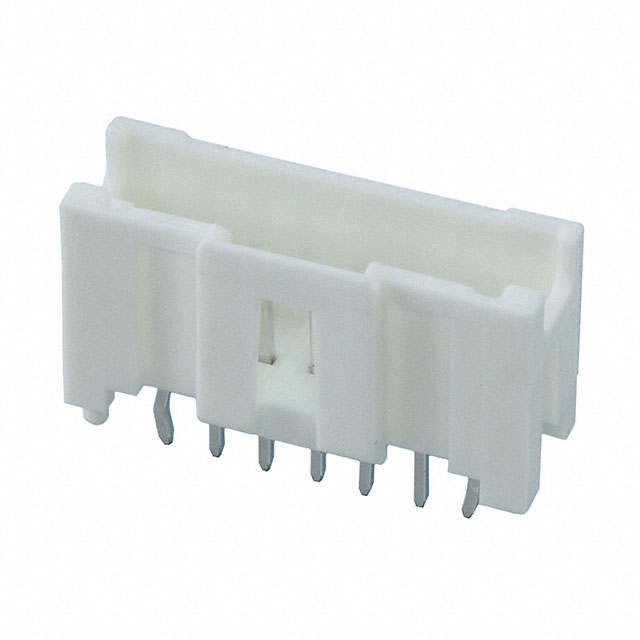

Molex 0559320710	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	7	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in	Board Guide
Molex 0559321310	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	13	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in	Board Guide

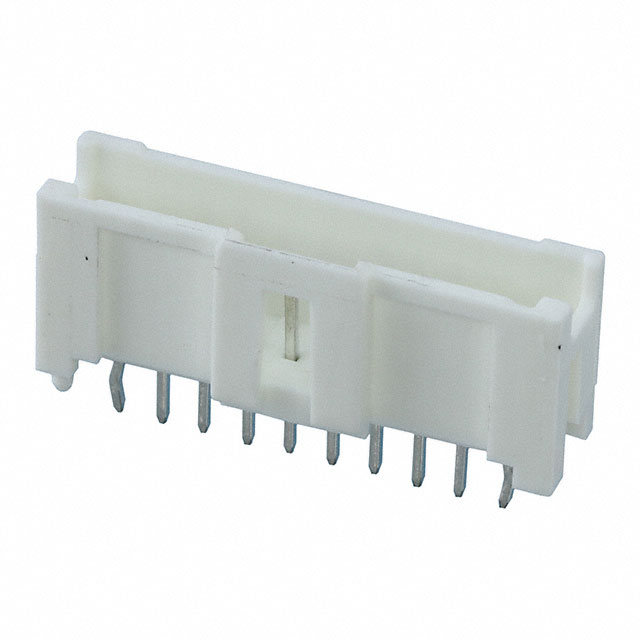

Molex 0559321010	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	10	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in	Board Guide

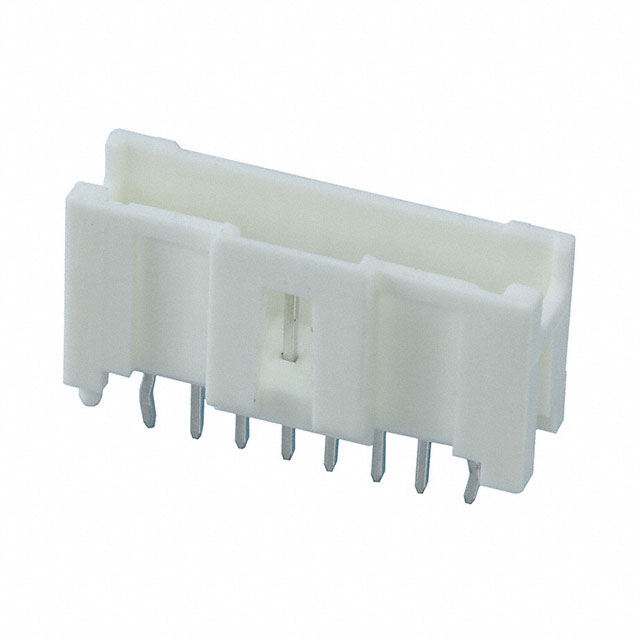

Molex 0559320810	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	8	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in	Board Guide
Molex 0559320317
Molex 0559320237

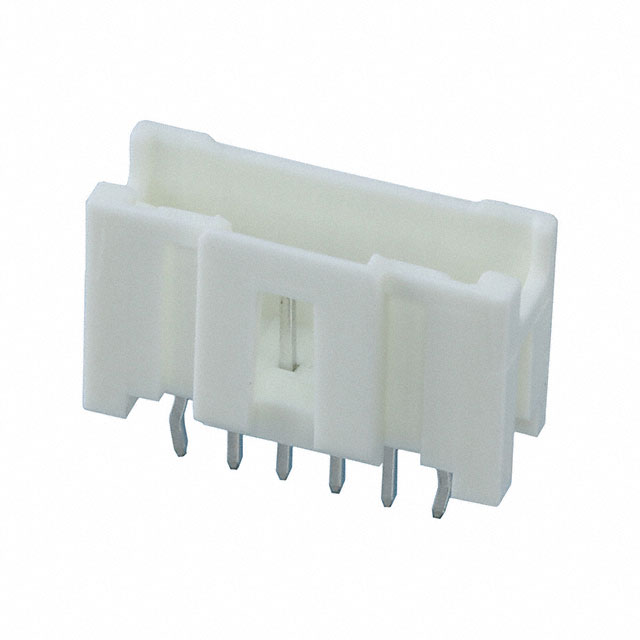

Molex 0559320630	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	6	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in

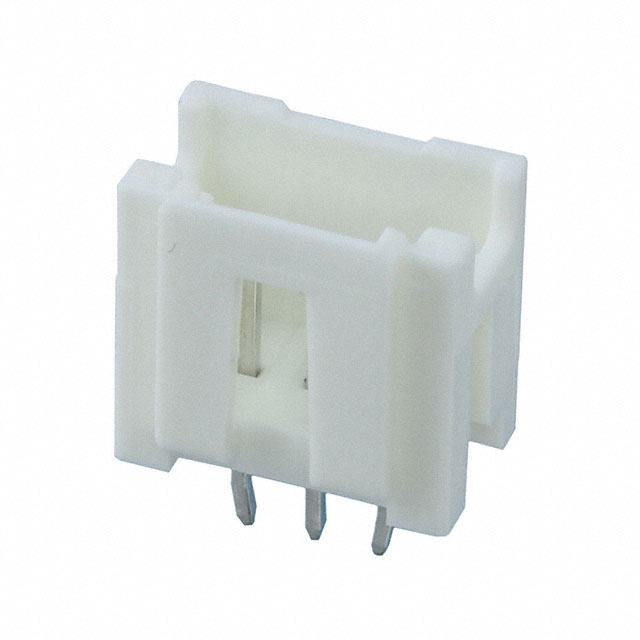

Molex 0559320330	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm		Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in

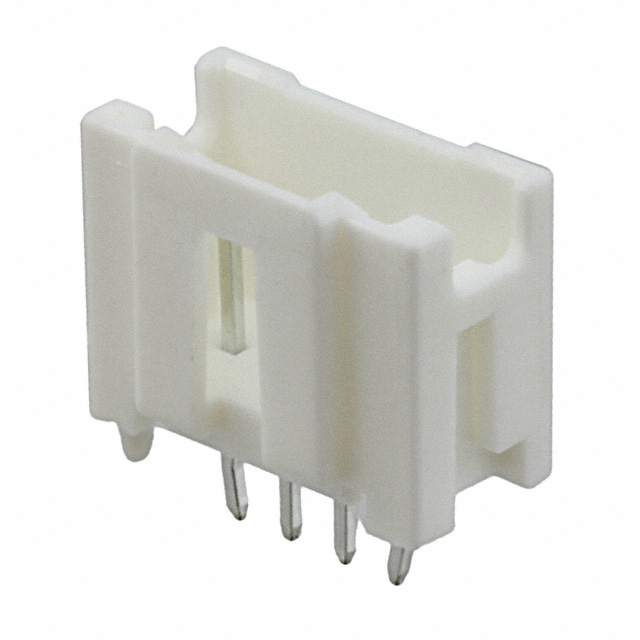

Molex 0559320410	Square	Natural	0.384 in	9.75 mm	All	Kinked Pin Solder	General Purpose Industrial Medical	Male Pin	0.144 in	3.66 mm	4	Header	Board to Cable/Wire	3.2 mm	0.126 in	1	13.2 mm	Through Hole	Shrouded - 4 Wall	Latch Holder	Tin	0.079 in	2 mm	Polybutylene Terephthalate (PBT)	9.15 mm	0.36 in	Board Guide
