PC3SD21 Series

Catalog

OPTOISOLATOR 5KV TRIAC 6DIP

Part	Current - Hold (Ih)	Current - On State (It (RMS)) (Max) [Max]	Turn On Time [Max]	Package / Case	Mounting Type	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Off State	Output Type	Supplier Device Package	Static dV/dt (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - DC Forward (If) (Max) [Max]	Number of Channels [custom]	Package / Case	Package / Case	Package / Case
SHARP/Socle Technology PC3SD21NTZAF	3.5 mA	100 mA	50 µs	6-DIP (0.300" 7.62mm)	Through Hole	10 mA	600 V	Triac	6-DIP	1 kV/µs	-30 ░C	100 °C	CSA UR	50 mA	1
SHARP/Socle Technology PC3SD21NTZBF	3.5 mA	100 mA	50 µs	6-DIP	Through Hole	7 mA	600 V	Triac	6-DIP	1 kV/µs	-30 ░C	100 °C	CSA UR	50 mA	1	0.3 in	5 Leads	7.62 mm

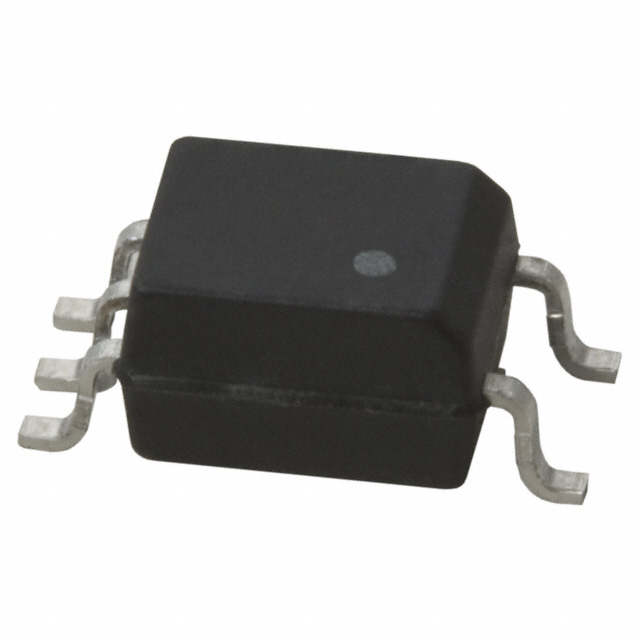

SHARP/Socle Technology PC3SD21YXPDF	3.5 mA	100 mA	50 µs	6-SMD	Surface Mount	3 mA	600 V	Triac	6-SMD	1 kV/µs	-30 ░C	100 °C	CSA UR VDE	50 mA	1
SHARP/Socle Technology PC3SD21YTZBF	3.5 mA	100 mA	50 µs	6-DIP (0.300" 7.62mm)	Through Hole	7 mA	600 V	Triac	6-DIP	1 kV/µs	-30 ░C	100 °C	CSA UR VDE	50 mA	1
SHARP/Socle Technology PC3SD21YXPDH	3.5 mA	100 mA	50 µs	6-SMD (5 Leads) Gull Wing	Surface Mount	3 mA	600 V	Triac	6-SMD	1 kV/µs	-30 ░C	100 °C	CSA UR VDE	50 mA	1
SHARP/Socle Technology PC3SD21NTZDF	3.5 mA	100 mA	50 µs	6-DIP	Through Hole	3 mA	600 V	Triac	6-DIP	1 kV/µs	-30 ░C	100 °C	CSA UR	50 mA	1	0.3 in	5 Leads	7.62 mm
SHARP/Socle Technology PC3SD21NTZDH	3.5 mA	100 mA	50 µs	6-DIP	Through Hole	3 mA	600 V	Triac	6-DIP	1 kV/µs	-30 ░C	100 °C	CSA UR	50 mA	1	0.3 in	5 Leads	7.62 mm
