UWE-5 Series

Catalog

DC DC CONVERTER 5V 100W

Part	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Control Features	Current - Output (Max) [Max]	Applications	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Number of Outputs	Mounting Type	Supplier Device Package
Murata Electronics UWE-5/20-Q48PB-C	100 W	85 °C	-40 C	90.5 %	18 V	8-DIP Module 1/8 Brick	Active High Enable	20 A	ITE (Commercial)	2250 VDC	5 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/20-Q48P-C	100 W	85 °C	-40 C	90.5 %	18 V	8-DIP Module 1/8 Brick	Active High Enable	20 A	ITE (Commercial)	2250 VDC	5 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/15-Q12NB-C	75 W	85 °C	-40 C	91 %	9 V	8-DIP Module 1/8 Brick	Active Low Enable	15 A	ITE (Commercial)	1.5 kV	5 V	36 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/24-Q12P-C	120 W	85 °C	-40 °C	92 %	9 V	Eighth Brick	Active High Enable	24 A	ITE (Commercial)	2250 VDC	5 V	36 V		Isolated Module	2.3 in	58.4 mm	10.2 mm	0.4 "	22.9 mm	0.9 in	1	Through Hole	Eighth Brick
Murata Electronics UWE-5/15-Q12P-C	75 W	85 °C	-40 C	91 %	9 V	8-DIP Module 1/8 Brick	Active High Enable	15 A	ITE (Commercial)	1.5 kV	5 V	36 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/15-Q12N-C	75 W	85 °C	-40 C	91 %	9 V	8-DIP Module 1/8 Brick	Active Low Enable	15 A	ITE (Commercial)	1.5 kV	5 V	36 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/15-Q48P-C	75 W	85 °C	-40 C	90 %	18 V	8-DIP Module 1/8 Brick	Active High Enable	15 A	ITE (Commercial)	2250 VDC	5 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
Murata Electronics UWE-5/24-Q12NB-C	120 W	85 °C	-40 °C	92 %	9 V	Eighth Brick	Active Low Enable	24 A	ITE (Commercial)	2250 VDC	5 V	36 V	Baseplate Remote On/Off Remote Sense	Isolated Module	2.3 in	58.4 mm	13.2 mm	0.52 in	22.9 mm	0.9 in	1	Through Hole	Eighth Brick

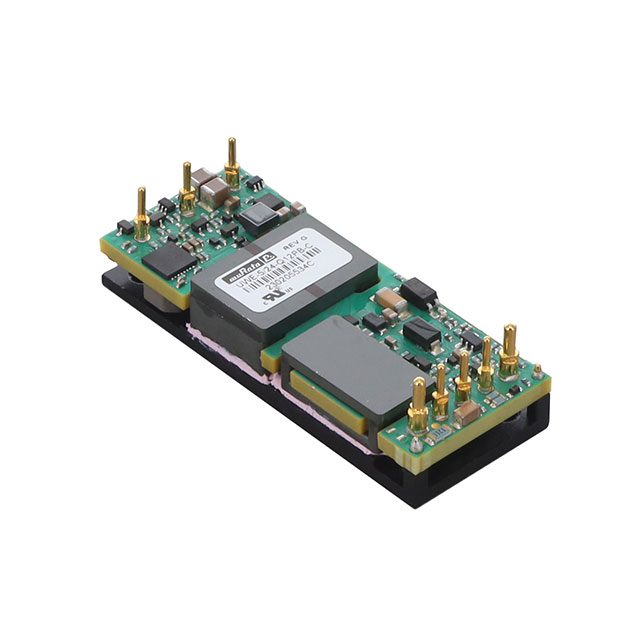

Murata Electronics UWE-5/24-Q12PB-C	120 W	85 °C	-40 °C	92 %	9 V	Eighth Brick	Active High Enable	24 A	ITE (Commercial)	2250 VDC	5 V	36 V	Baseplate Remote On/Off Remote Sense	Isolated Module	2.3 in	58.4 mm	13.2 mm	0.52 in	22.9 mm	0.9 in	1	Through Hole	Eighth Brick
Murata Electronics UWE-5/15-Q48NBL1-C		85 °C	-40 C	90 %	18 V	8-DIP Module 1/8 Brick	Active Low Enable	15 A	ITE (Commercial)	2250 VDC	5 V	75 V	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	1	Through Hole
