325021 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 1CIRCUIT
| Part | Operating Temperature | Material Flammability Rating | Mounting Type | Material - Insulation | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Top Termination | Barrier Type | Terminal Block Type | Number of Circuits | Current Rating (Amps) | Features | Number of Wire Entries | Number of Rows | Voltage Rating | Number of Wire Entries [custom] | Pitch | Pitch | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 1 | 15 A | Flange | 1 | 1 | 300 VDC | ||||

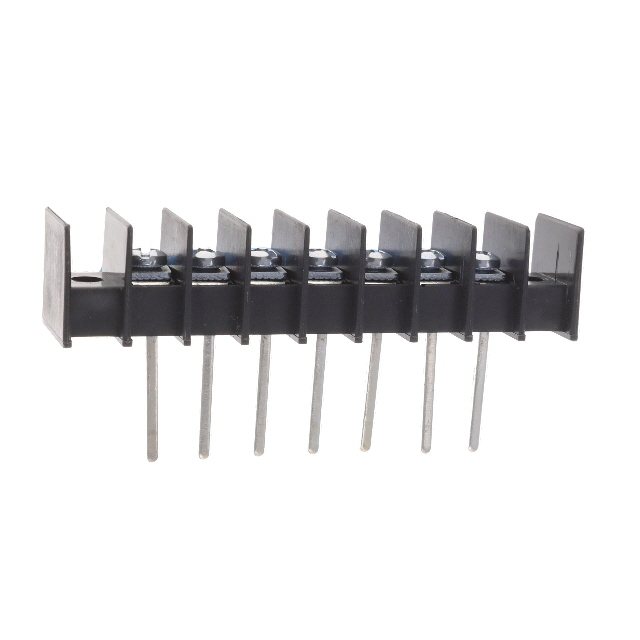

 Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 7 | 15 A | Flange | 1 | 300 VDC | 7 | 0.325 in | 8.26 mm | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 15 A | Flange | 23 | 1 | 300 VDC | 0.325 in | 8.26 mm | 23 | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 20 | 15 A | Flange | 20 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||

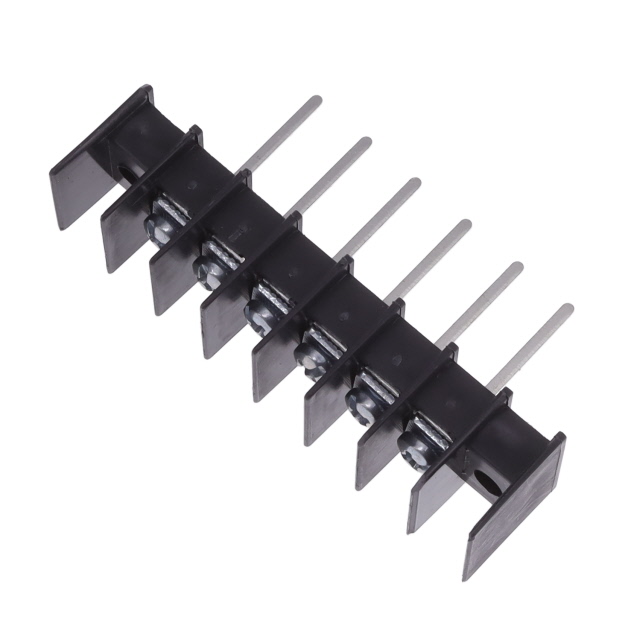

 Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 6 | 15 A | Flange | 6 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 21 | 15 A | Flange | 21 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 19 | 15 A | Flange | 19 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 26 | 15 A | Flange | 26 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||

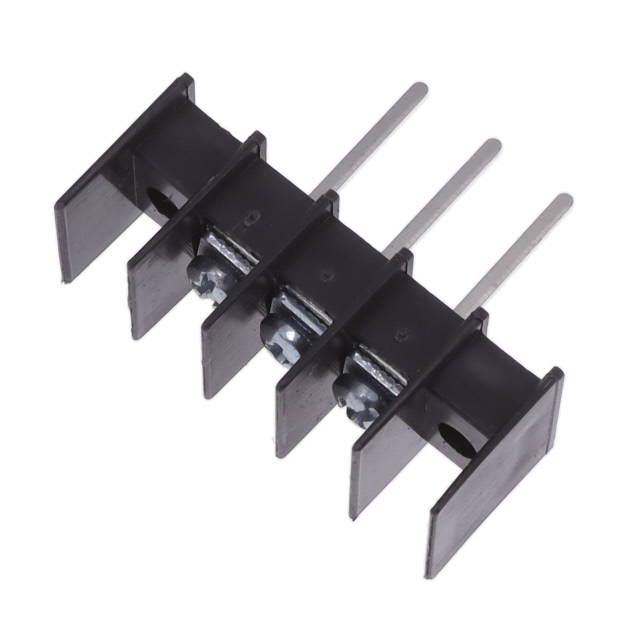

 Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 3 | 15 A | Flange | 3 | 1 | 300 VDC | 0.325 in | 8.26 mm | ||
Curtis Industries | 105 C | UL94 V-0 | Chassis Panel Through Hole | Polypropylene (PP) | Wire Wrap | 14 AWG | 22 AWG | Screws | 2 Wall (Dual) | Barrier Block | 13 | 15 A | Flange | 13 | 1 | 300 VDC | 0.325 in | 8.26 mm |
