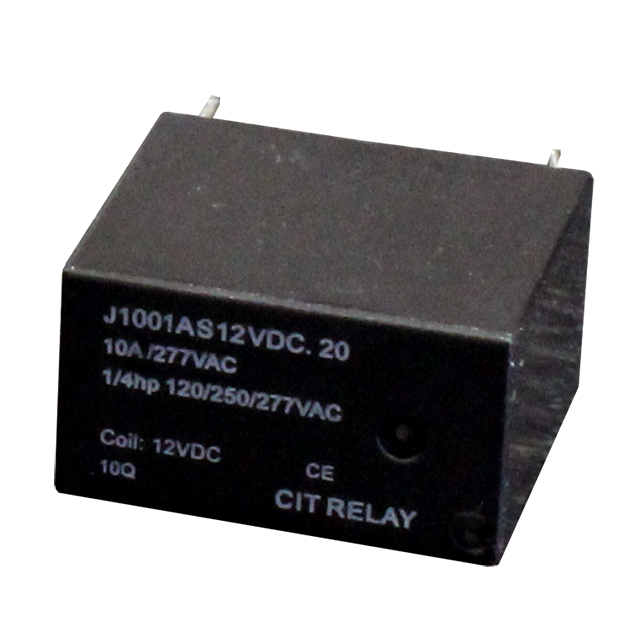

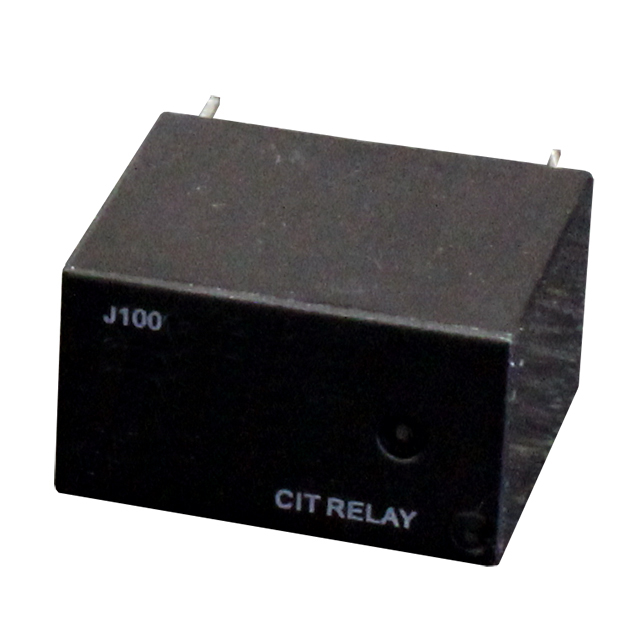

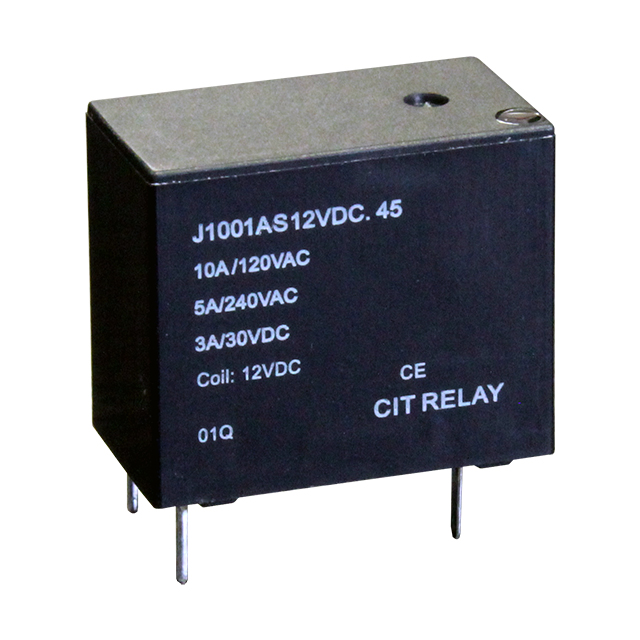

J1001AS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY GEN PURPOSE SPST 10A 18V
| Part | Coil Resistance | Must Release Voltage | Operate Time | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Mounting Type | Switching Voltage [Max] | Contact Form | Contact Material | Relay Type | Coil Voltage | Seal Rating | Release Time | Load - Max Switching | Coil Type | Must Operate Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1.62 kOhms | 1.8 VDC | 10 ms | 11.1 mA | -55 C | 85 °C | 10 A | Through Hole | 277 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | General Purpose | 18 VDC | Sealed - Fully | 10 ms | 2770 VA | Non Latching | 13.5 VDC | PC Pin |
CIT Relay and Switch | 125 Ohms | 0.5 VDC | 10 ms | 40 mA | -55 C | 85 °C | 10 A | Through Hole | 277 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | General Purpose | 5 VDC | Sealed - Fully | 10 ms | 2770 VA | Non Latching | 3.75 VDC | PC Pin |
CIT Relay and Switch | 720 Ohms | 1.8 VDC | 10 ms | 25 mA | -55 C | 85 °C | 10 A | Through Hole | 277 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | General Purpose | 18 VDC | Sealed - Fully | 10 ms | 2770 VA | Non Latching | 13.5 VDC | PC Pin |
 CIT Relay and Switch | 720 Ohms | 1.2 VDC | 10 ms | 16.7 mA | -55 C | 85 °C | 10 A | Through Hole | 277 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | General Purpose | 12 VDC | Sealed - Fully | 10 ms | 2770 VA | Non Latching | 9 VDC | PC Pin |
 CIT Relay and Switch | 320 Ohms | 1.2 VDC | 10 ms | 0.0375 A | -55 C | 85 °C | 10 A | Through Hole | 277 VAC | SPST-NO (1 Form A) | Silver Tin Oxide (AgSnO) | General Purpose | 12 VDC | Sealed - Fully | 10 ms | 2770 VA | Non Latching | 9 VDC | PC Pin |
