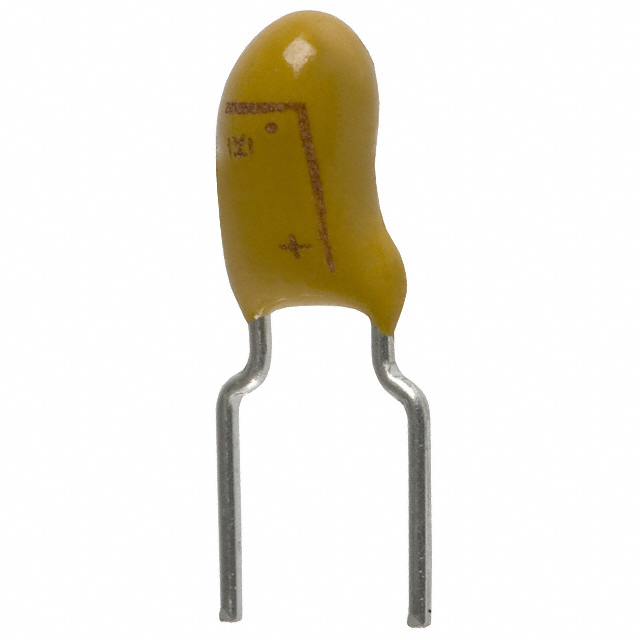

T356B Series

Manufacturer: KEMET

Catalog

CAP TANT 0.68UF 10% 50V RADIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	ESR (Equivalent Series Resistance)	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Voltage - Rated	Package / Case	Manufacturer Size Code
KEMET T356B684K050AT	-55 C	125 °C	General Purpose	Through Hole	10 Ohm	0.2 in	5.08 mm	0.68 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	50 VDC	Radial	B
KEMET T356B335K025AT	-55 C	125 °C	General Purpose	Through Hole	5 Ohm	0.2 in	5.08 mm	3.3 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	25 VDC	Radial	B
KEMET T356B685K010AT	-55 C	125 °C	General Purpose	Through Hole	6 Ohms	0.2 in	5.08 mm	6.8 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	10 V	Radial	B
KEMET T356B105K050AT	-55 C	125 °C	General Purpose	Through Hole	8 Ohm	0.2 in	5.08 mm	1 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	50 VDC	Radial	B
KEMET T356B225K025AT	-55 C	125 °C	General Purpose	Through Hole	6 Ohms	0.2 in	5.08 mm	2.2 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	25 VDC	Radial	B
KEMET T356B475K016AS	-55 C	125 °C	General Purpose	Through Hole	5 Ohm	0.2 in	5.08 mm	4.7 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	16 V	Radial	B
KEMET T356B106K006AT	-55 C	125 °C	General Purpose	Through Hole	6 Ohms	0.2 in	5.08 mm	10 µF	8.9 mm	0.35 "	Conformal Coated	4.5 mm	0.177 "	10 %	6.3 VDC	Radial	B
