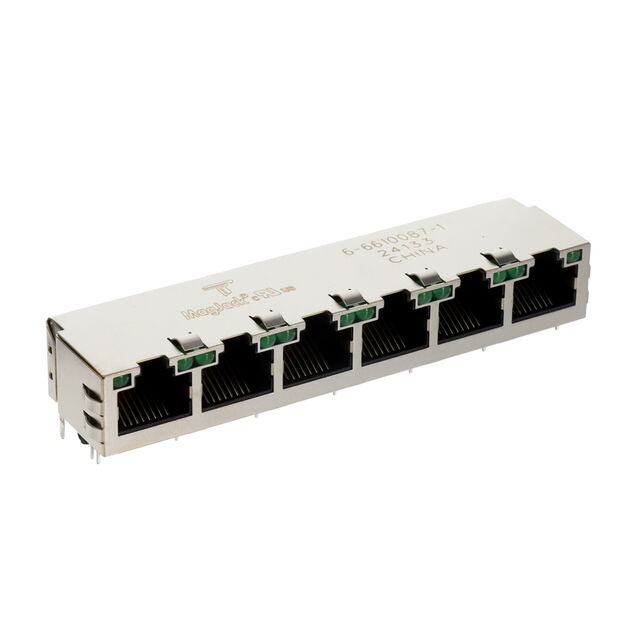

6-6610087 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS
| Part | Connector Type | Tab Direction | Features | Contact Material | Number of Rows | Number of Ports [custom] | Termination | Shielding | Height Above Board | Height Above Board | Mounting Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | LED Color | Contact Finish | Applications | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | RJ45 | Up | Board Lock | Phosphor Bronze | 1 | 6 | Solder | EMI Finger Shielded | 0.555 " | 14.1 mm | Through Hole | 90 ° | 70 °C | 0 °C | Green - Green | Gold | 10/100 Base-T AutoMDIX | ||||
Bel Fuse Inc. | RJ45 | Up | Board Lock | Phosphor Bronze | 1 | 6 | Solder | EMI Finger Shielded | 0.555 " | 14.1 mm | Through Hole | 90 ° | 70 °C | 0 °C | Green - Green | Gold | 10/100 Base-T AutoMDIX | Brass | 50 µin | 1.27 µm | Polyester Polyethylene Terephthalate (PET) |
