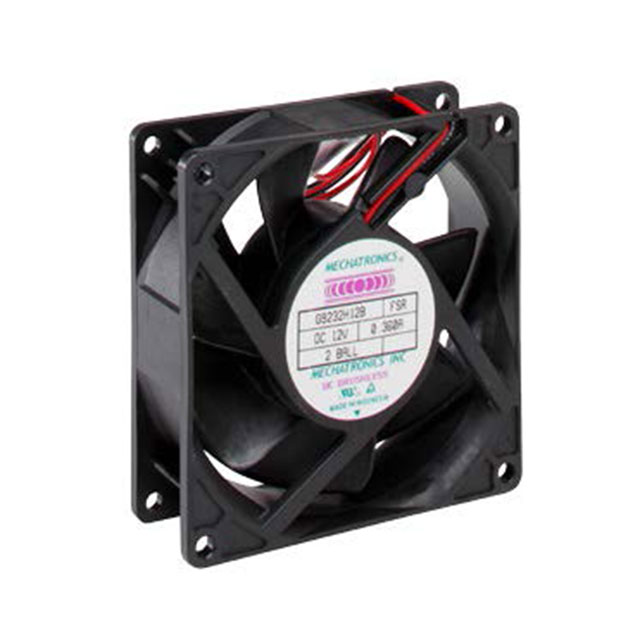

G9232 Series

Catalog

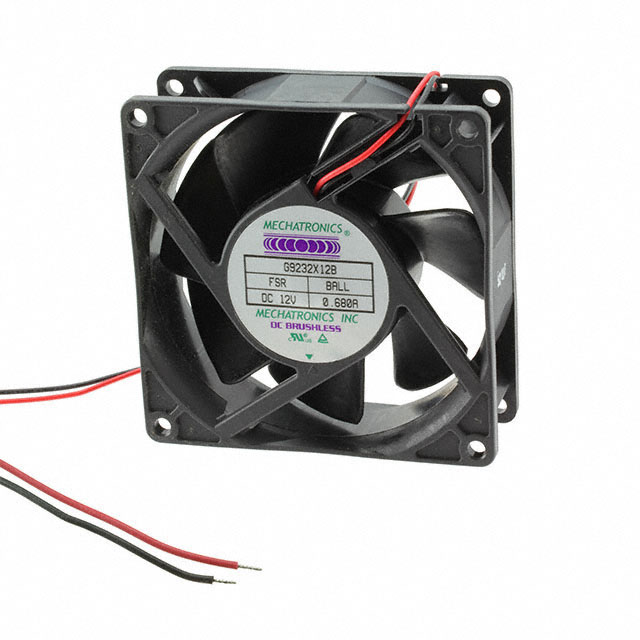

FAN AXIAL 92X32MM 36VDC WIRE

Part	Material - Blade	Weight	Weight	RPM	Features	Fan Type	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Bearing Type	Noise	Width [y]	Voltage - Rated	Termination	Approval Agency	Current Rating (Amps)	Ingress Protection
Mechatronics Fan Group G9232X36B-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	36 VDC	2 Wire Leads	CE cUL TUV UL
Mechatronics Fan Group G9232X24B1-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	24 VDC	3 Wire Leads	CE cUL TUV UL	0.68 A
Mechatronics Fan Group G9232X24B-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	0.68 A
Mechatronics Fan Group G9232X12B1-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	12 VDC	3 Wire Leads	CE cUL TUV UL	0.68 A
Mechatronics Fan Group G9232M24B1-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	2800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Tubeaxial	1.34 m³/min	48 CFM	92 mm	92 mm	0.18 in H2O	44.8 Pa	Ball	32 dB	32 mm	24 VDC	3 Wire Leads	CE cUL TUV UL	270 mA
Mechatronics Fan Group G9232E24B-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	3600 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.68 m³/min	60 CFM	92 mm	92 mm	0.28 in H2O	69.7 Pa	Ball	38 dB(A)	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	270 mA
Mechatronics Fan Group G9232X24B-FS	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	360 mA
Mechatronics Fan Group G9232M24B-FSR	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	2800 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.34 m³/min	48 CFM	92 mm	92 mm	0.18 in H2O	44.8 Pa	Ball	32 dB	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	140 mA
Mechatronics Fan Group G9232X24B-FSR-EM	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	0.68 A	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G9232X24B-FSR-CC	Polybutylene Terephthalate (PBT)	151.95 g	0.335 lb	4000 RPM	Conformal Coating Thermal Overload Protector (TOP)	Tubeaxial	1.9 m³/min	68 CFM	92 mm	92 mm	0.33 in H2O	82.2 Pa	Ball	44 dB(A)	32 mm	24 VDC	2 Wire Leads	CE cUL TUV UL	360 mA
