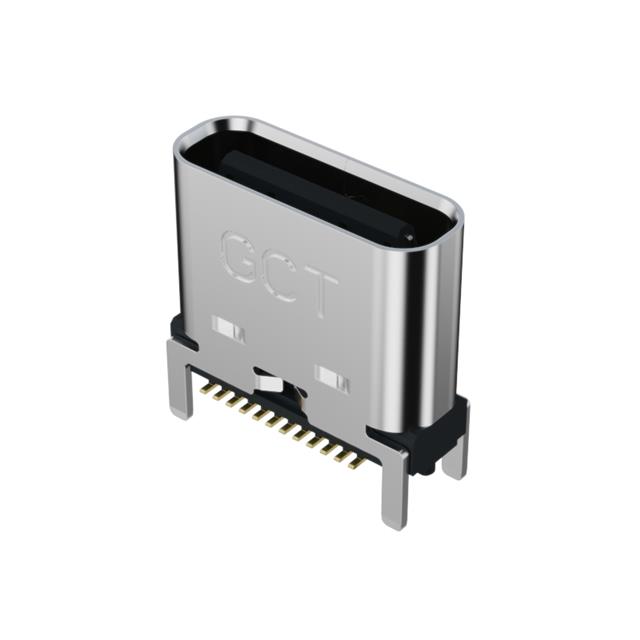

USB4160 Series
Manufacturer: GCT
Beta
⌘K
USB 3.2 TYPE-C RECPT VERT SMT .7
| Part | Contact Finish | Shell/Shielding Material | Features | Material Flammability Rating | Insulation Color | Number of Contacts [custom] | Termination | Mounting Feature | Shielding | Mounting Type | Specifications | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mating Cycles | Voltage - Rated | Current Rating (Amps) | Gender | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Stainless Steel | Board Guide Solder Retention Tab | UL94 V-0 | Black | 24 | Solder | Vertical | Shielded | Surface Mount Through Hole | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 85 °C | -25 °C | USB-C (USB TYPE-C) | 20000 | 48 VDC | 5 A | Receptacle | 1 | |
Gold | Stainless Steel | Board Guide Solder Retention Tab | UL94 V-0 | Black | 24 | Solder | Vertical | Shielded | Surface Mount Through Hole | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 85 °C | -25 °C | USB-C (USB TYPE-C) | 20000 | 48 VDC | 5 A | Receptacle | 1 | |
Gold | Stainless Steel | Board Guide Solder Retention Tab | UL94 V-0 | Black | 24 | Solder | Vertical | Shielded | Surface Mount Through Hole | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | 85 °C | -25 °C | USB-C (USB TYPE-C) | 20000 | 48 VDC | 5 A | Receptacle | 1 |
