048037 Series
Manufacturer: Molex
Beta
⌘K

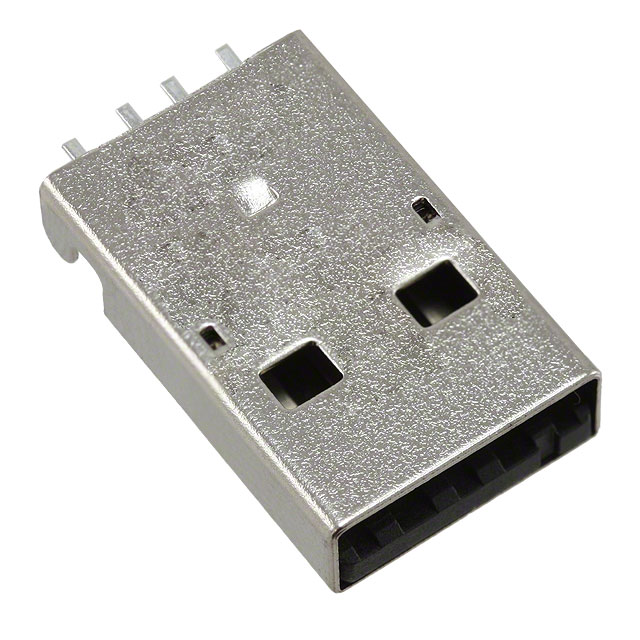

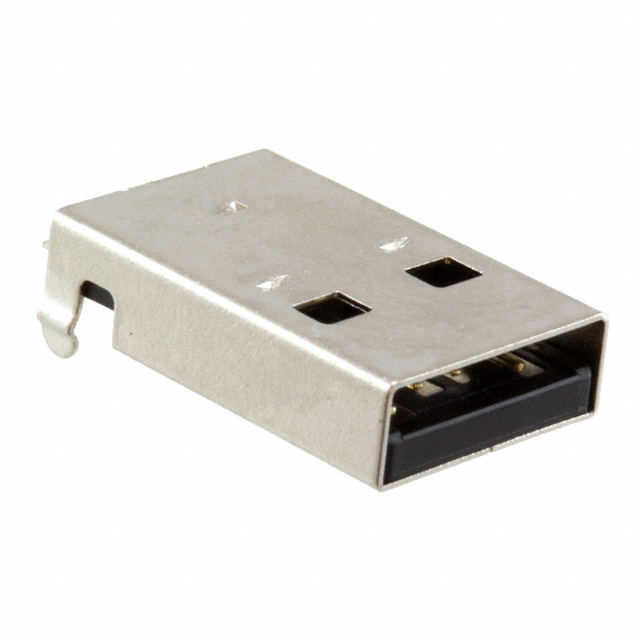

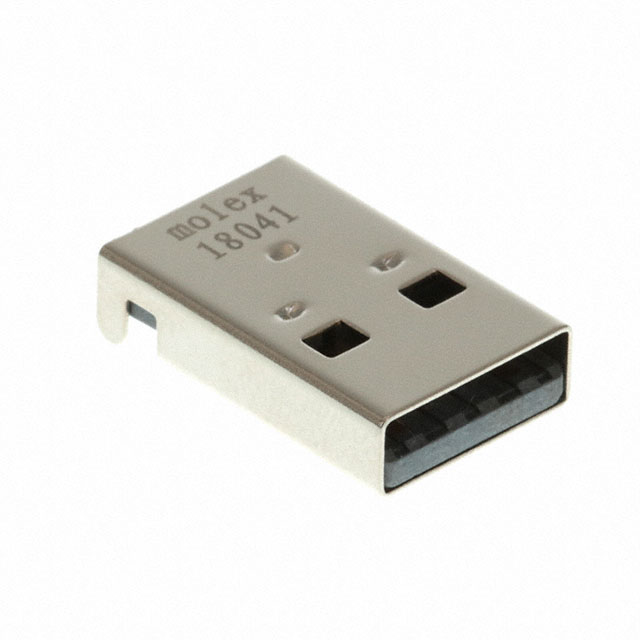

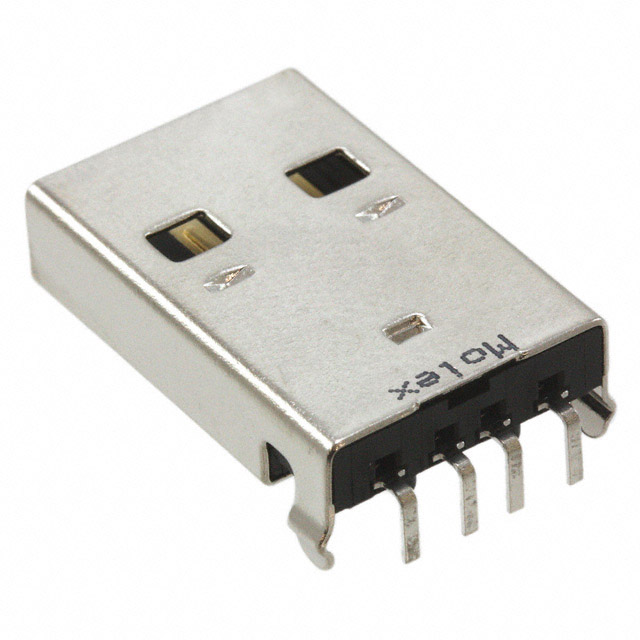

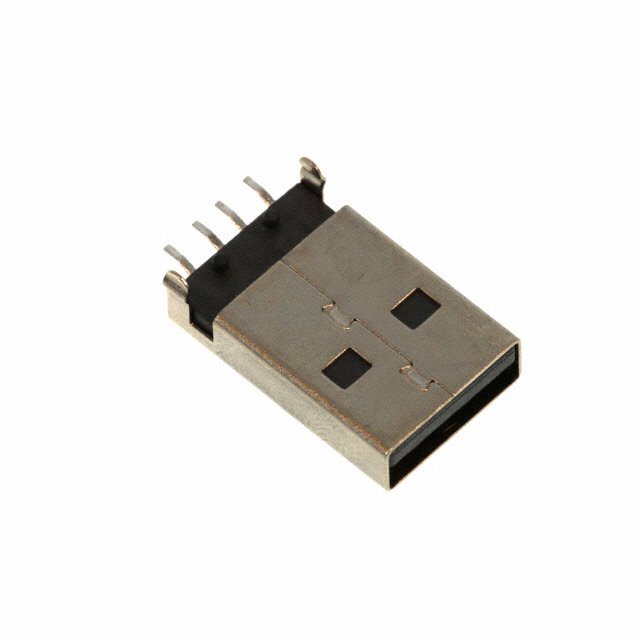

CONN PLUG USB2.0 TYPEA 4POS R/A
| Part | Number of Ports | Gender | Insulation Color | Contact Finish | Connector Type | Number of Contacts [custom] | Specifications | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination | Shell/Shielding Material | Mounting Feature | Voltage - Rated | Mounting Type | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1 | Plug | Black | Gold | USB-A (USB TYPE-A) | 4 | USB 2.0 | Shielded | 85 °C | -20 C | 1.5 A | Solder | Steel (SPCC) | Horizontal | 150 VAC | Through Hole Right Angle | UL94 V-0 | |
 Molex | 1 | Plug | Black | Gold | USB-A (USB TYPE-A) | 4 | USB 2.0 | Shielded | 85 °C | -20 C | 1.5 A | Solder | Steel | Horizontal | 150 VAC | Surface Mount Right Angle | UL94 V-0 | |
 Molex | 1 | Plug | Black | Gold | USB-A (USB TYPE-A) | 4 | USB 2.0 | Shielded | 85 °C | -20 C | 1.5 A | Solder | Steel | Horizontal | 150 VAC | Surface Mount Right Angle Through Hole | UL94 V-0 | Board Guide |
 Molex | 1 | Plug | Black | Gold | USB-A (USB TYPE-A) | 4 | USB 2.0 | Shielded | 85 °C | -20 C | 1.5 A | Solder | Steel | Horizontal | 150 VAC | Surface Mount Right Angle Through Hole | UL94 V-0 | Board Guide |
 Molex | 1 | Plug | Black | Gold | USB-A (USB TYPE-A) | 4 | USB 2.0 | Shielded | 85 °C | -20 C | 1.5 A | Solder | Steel (SPCC) | Horizontal | 150 VAC | Surface Mount Right Angle Through Hole | UL94 V-0 | Board Guide |
