TMC1420 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

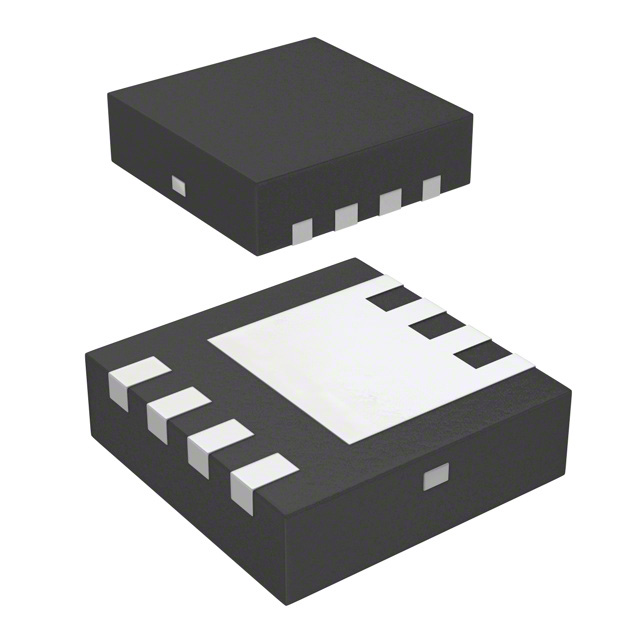

MOSFET N/P-CH 40V 8.8A/7.3A PQFN
| Part | Supplier Device Package | Power - Max [Max] | Mounting Type | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Technology | Drain to Source Voltage (Vdss) | Package / Case | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | PQFN (5x6) | 3.57 W | Surface Mount | 26.5 mOhm | 3 V | 11.2 nC | 1050 pF | 150 °C | -55 °C | N and P-Channel | MOSFET (Metal Oxide) | 40 V | 8-PowerTDFN | 7.3 A 8.8 A |
