MS220 Series
Manufacturer: Masach Tech Ltd.
Beta
⌘K

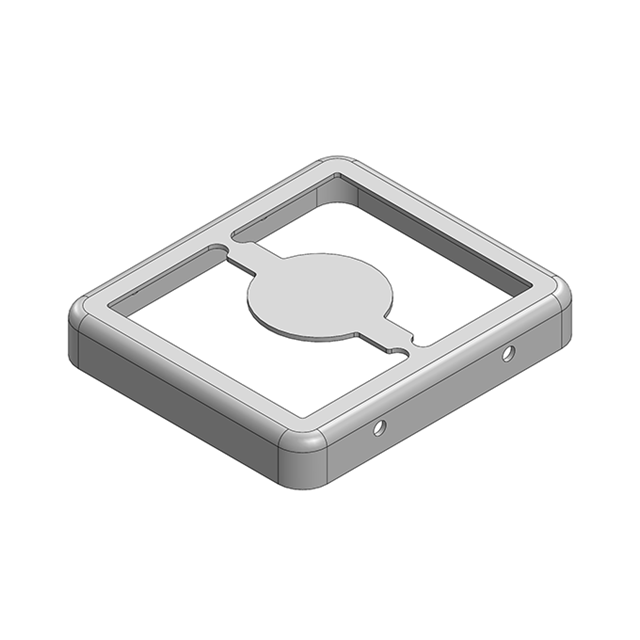

22 X 19.3 X 3.3MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS); MATERIAL: TIN-STEEL (CRS); PACKAGE TYPE: TRAY
| Part | Length - Overall [x] | Length - Overall [x] | Height - Overall | Height - Overall | Mounting Type | Type | Width - Overall [x] | Width - Overall [x] | Width - Overall [y] | Width - Overall [y] | Height - Overall [z] | Ventilation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Masach Tech Ltd. | 0.866 " | 22 mm | 3.3 mm | 0.13 in | Solder | Frame | 19.3 mm | 0.76 in | ||||

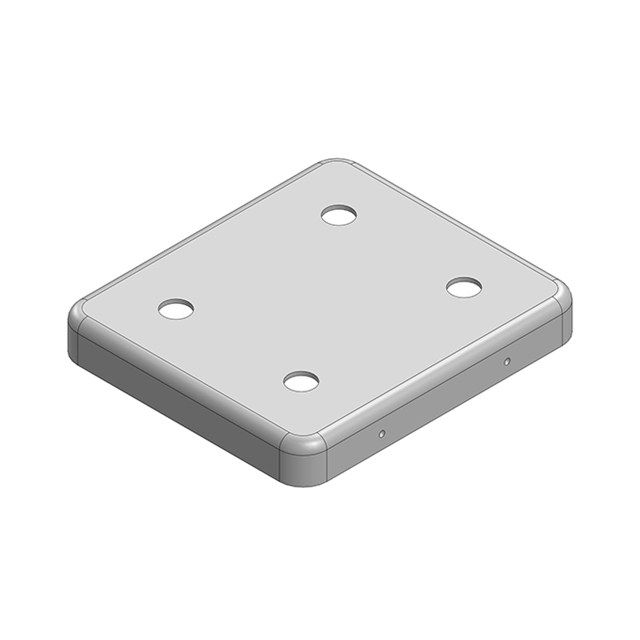

 Masach Tech Ltd. | 0.89 in | 22.6 mm | 3 mm | Snap Fit | Cover | 0.783 in | 19.9 mm | 0.118 in | Vent Holes in Pattern |
