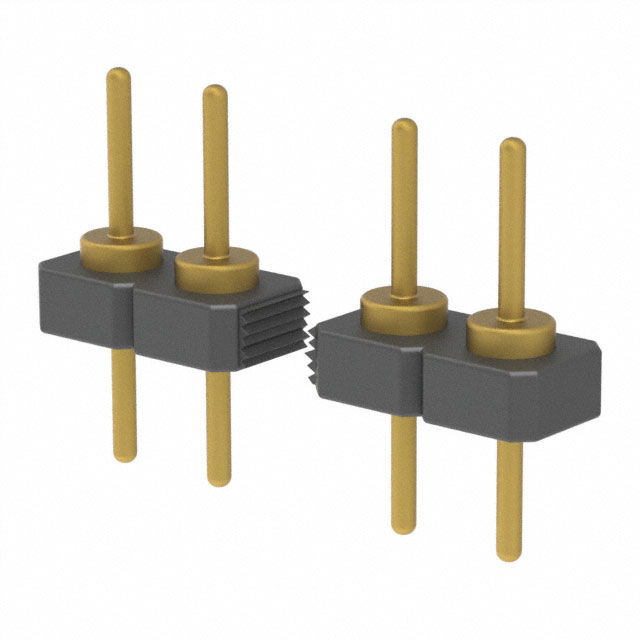

335-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 21POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Type	Connector Type	Voltage Rating	Voltage Rating	Overall Contact Length	Number of Positions	Number of Rows	Mounting Type	Contact Material	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded
Mill-Max Manufacturing Corp. 335-10-121-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	21	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-120-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	20	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-114-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	14	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-110-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	10	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-105-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	5	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-130-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	30	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-126-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	26	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-111-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	11	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
Mill-Max Manufacturing Corp. 335-10-112-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	12	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All

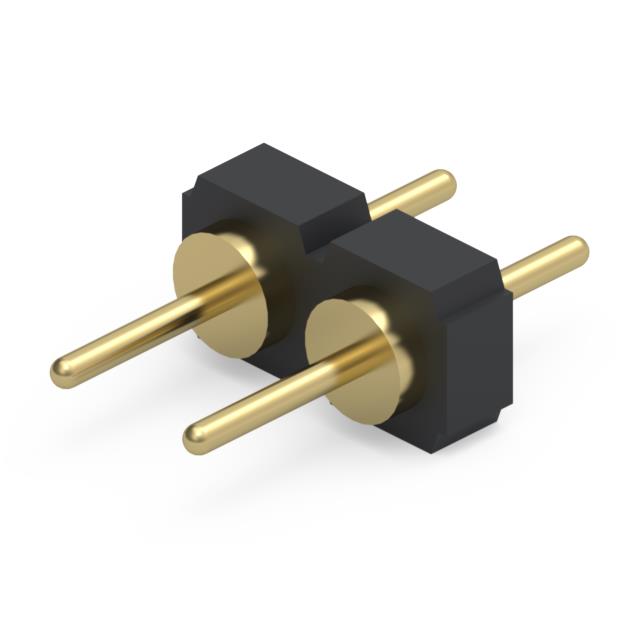

Mill-Max Manufacturing Corp. 335-10-102-00-160000	10 Áin	0.25 çm	Solder	Male Pin	Header	100 V	150 VDC	0.299 in 7.6 mm	2	1	Through Hole	Brass Alloy	0.1 "	2.54 mm	Unshrouded	0.25 µm	10 µin	Push-Pull	Black	1.27 mm	0.05 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.104 in	2.64 mm	0.125 in	3.18 mm	Circular	Gold	Gold	All
