TPS62020 Series

Catalog

EVAL BOARD FOR TPS62020

Part	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Utilized IC / Part	Main Purpose	Voltage - Output	Regulator Topology	Current - Output	Number of Outputs	Output Configuration	Supplier Device Package	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed) [Min]	Frequency - Switching	Topology	Package / Case	Package / Case	Output Type	Function	Mounting Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]

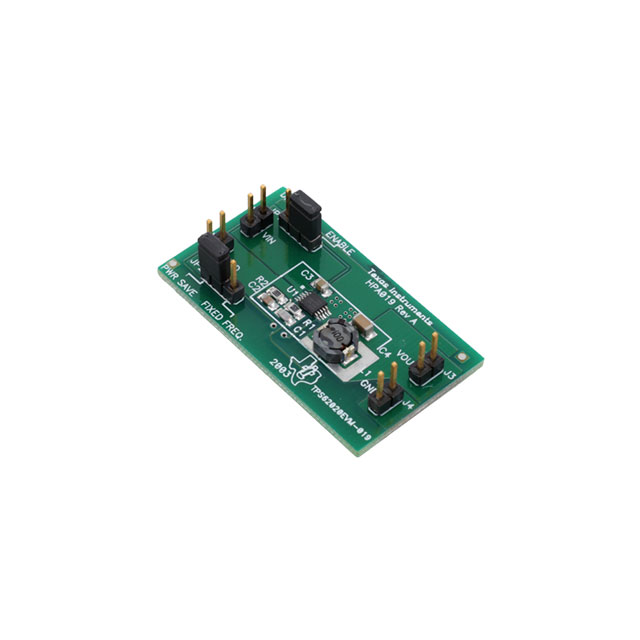

Texas Instruments TPS62020EVM-019	Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	6 V	2.5 V	Board(s)	TPS62020	DC/DC Step Down	1.5 V	Buck	600 mA
Texas Instruments TPS62020DGQ												600 mA	1	Positive	10-HVSSOP	2.5 V	0.7 V	1.25 MHz	Buck	10-MSOP 10-PowerTFSOP	0.118 " 3 mm	Adjustable	Step-Down	Surface Mount	6 V	85 C	-40 ¯C
Texas Instruments TPS62020DGQRG4												600 mA	1	Positive	10-HVSSOP	2.5 V	0.7 V	1.25 MHz	Buck	10-MSOP 10-PowerTFSOP	0.118 " 3 mm	Adjustable	Step-Down	Surface Mount	6 V	85 C	-40 ¯C
Texas Instruments TPS62020DRCR												600 mA	1	Positive	10-VSON (3x3)	2.5 V	0.7 V	1.25 MHz	Buck	10-VFDFN Exposed Pad		Adjustable	Step-Down	Surface Mount	6 V	85 C	-40 ¯C
Texas Instruments TPS62020DGQR												600 mA	1	Positive	10-HVSSOP	2.5 V	0.7 V	1.25 MHz	Buck	10-MSOP 10-PowerTFSOP	0.118 " 3 mm	Adjustable	Step-Down	Surface Mount	6 V	85 C	-40 ¯C
