54100-17X Series

54100-17X-05-A SENS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

54100-17X-05-A SENS

Part	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Features	Output Type	Current - Supply (Max) [Max]	Polarization	Technology	Mounting Type	Test Condition [Max]	Test Condition [Min]	Sensing Range	Operating Temperature [Min]	Operating Temperature [Max]
Littelfuse/Commercial Vehicle Products 54100-17X-05-A	Latch Omnipolar Switch	1.8 V	5.5 V	Module	Temperature Compensated	Push-Pull	1.5 ÁA	North Pole South Pole	Hall Effect	Flange Mount	100 °C	-40 °C	1 mT 1.7 mT	-40 °C	100 °C

Catalog

54100-17X-05-A SENS

Key Features

• Magnetically operated position sensor

• Operation with north or south pole

• Digital switching

• High Sensitivity

• 3-wire (voltage output)

• Push-pull output

• Ultra-low power consumption at 1.5 μA

• Operates in a static or dynamic magetic field

• Built-in temperature compensation

• Excellent thermal stabiliity

Description

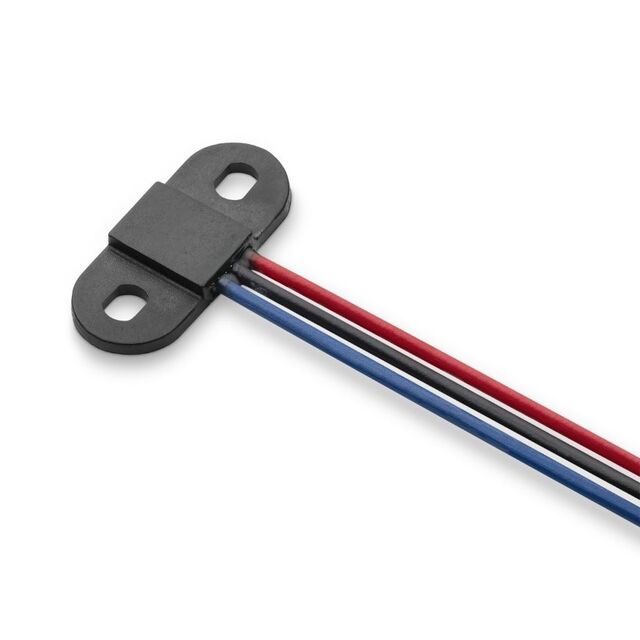

The 54100 is a miniature flange-mounting omnipolar TMR sensor measuring 25.5mm x 11.00mm x 3.00mm. The case design allows both screw and adhesive mounting of the sensor. This is a 3-wire sensor (power–ground–output), and is capable of switching up to 5.5 Vdc and 3.0 mA output current. The sensor leads may be used as shipped, or can be modified for a variety of connections, with two lead lengths offered. Customization may be supported for high-volume long-running production needs, contact Littelfuse for options.
