AFL Series

Catalog

EC FANS EC AXIAL FAN, 250X80MM ROUND, 115/230VAC, 2200/1600RPM, 3X LEAD WIRES, IP56

Part	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Noise	Width [x]	Fan Type	Termination	RPM [Max]	RPM [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Features	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Approval Agency	Ingress Protection	Air Flow	Air Flow	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Weight [custom]	Weight [custom]	Voltage - Rated
Delta Electronics AFL25AUHW-P0	Plastic	100 VAC	240 VAC	Plastic	57 dB	85.7 mm	Tubeaxial	3 Wire Leads	2200 RPM	1600 RPM	230 VAC	115 VAC	Dual Speed Dual Voltage Locked Rotor Protection Thermal Overload Protector (TOP)	0.52 in H2O	129.5 Pa	55 °C	-40 C	Ball	ATEX CE cURus TUV	IP56 - Dust Protected Water Resistant	445 CFM	12.46 m³/min	9 W 21 W	250 mm	Round

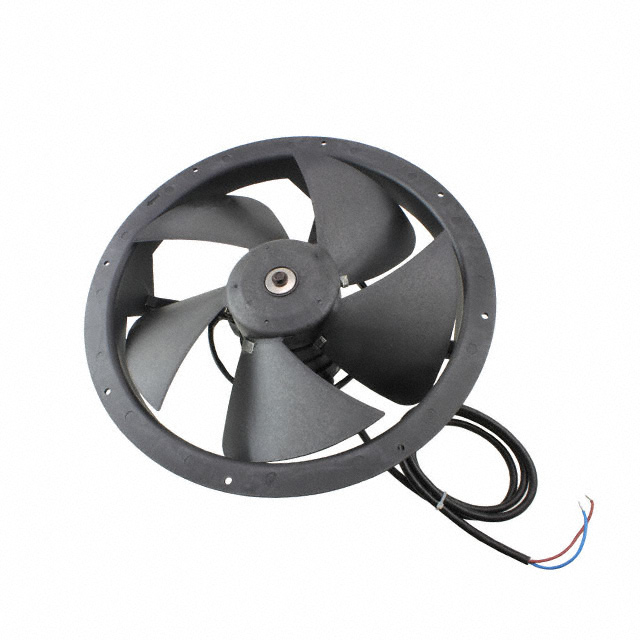

Delta Electronics AFL28A2LU-BRA01	Plastic			Plastic	55 dB(A)	105 mm	Tubeaxial	2 Wire Leads						0.43 in H2O	107.1 Pa	60 °C	-20 ░C	Ball	TUV UL	IP55 - Dust Protected Water Resistant	460 CFM	12.88 m³/min	16 W	280 mm	Round	40 °C 60000 Hrs	60 °C	-4 °F	1400 RPM	2.5 lbs	1.1 kg	230 VAC
