207611 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

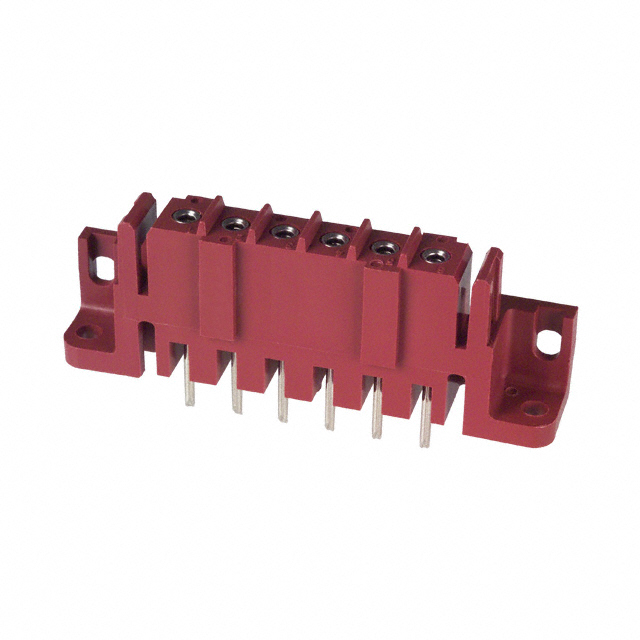

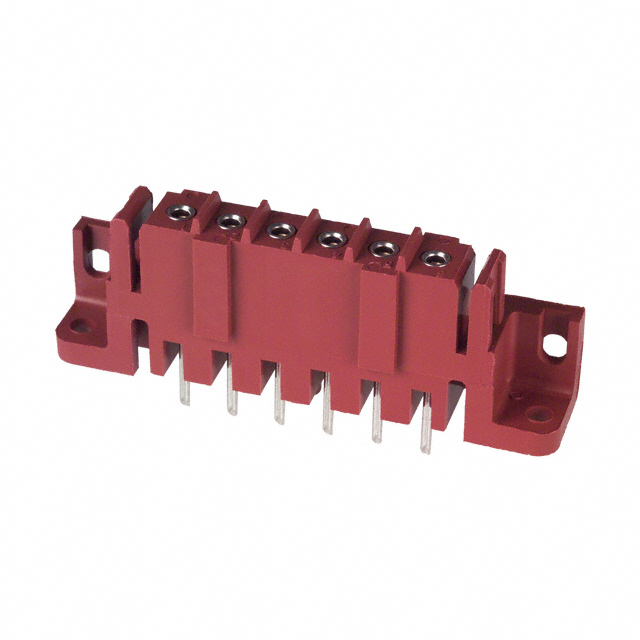

CONN HDR 6POS 0.197 GOLD PCB
| Part | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Connector Type | Termination | Current Rating (Amps) | Voltage Rating | Contact Material | Contact Shape | Features | Fastening Type | Mounting Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Gold | All | Tin-Lead | 6 | 5 mm | 0.197 " | Red | Female Socket | 150 Áin | 3.81 Ám | UL94 V-0 | Thermoplastic | 30 Áin | 0.76 Ám | 130 °C | -55 °C | 0.768 " | 19.5 mm | Header | Solder | 7.5 A | 600 V | Phosphor Bronze | Circular | Mounting Flange | Latch Holder | Through Hole | Board to Cable/Wire |
 TE Connectivity Raychem Cable Protection | 1 | Tin-Lead | All | Tin-Lead | 6 | 5 mm | 0.197 " | Red | Female Socket | 150 Áin | 3.81 Ám | UL94 V-0 | Thermoplastic | 150 Áin | 3.81 Ám | 130 °C | -55 °C | 0.768 " | 19.5 mm | Header | Solder | 7.5 A | 600 V | Phosphor Bronze | Circular | Mounting Flange | Latch Holder | Through Hole | Board to Cable/Wire |
