1969594 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT HSG 36POS 2.50MM

Part	Contact Type	Color	Number of Positions	Mounting Type	Connector Type	Row Spacing	Row Spacing	Number of Rows	Note	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Fastening Type	Contact Termination

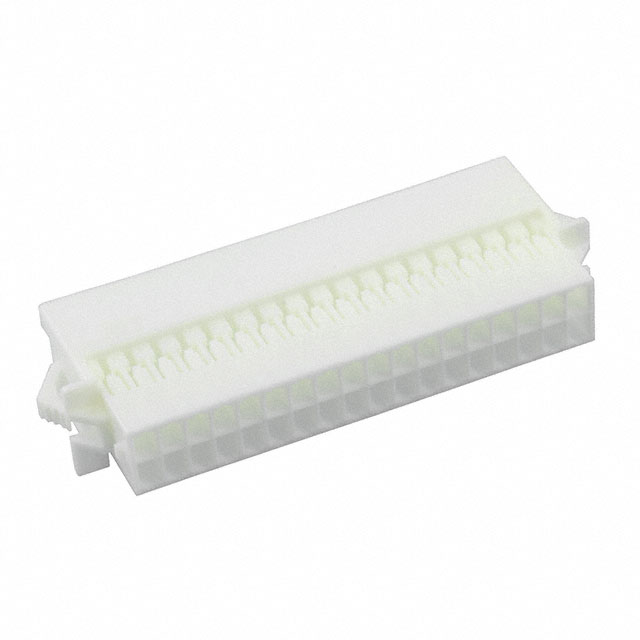

TE Connectivity Raychem Cable Protection 3-1969594-6	Male Pin	White	36	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp
TE Connectivity Raychem Cable Protection 1-1969594-8	Male Pin	White	18	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp
TE Connectivity Raychem Cable Protection 2-1969594-2	Male Pin	White	22 positions	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp

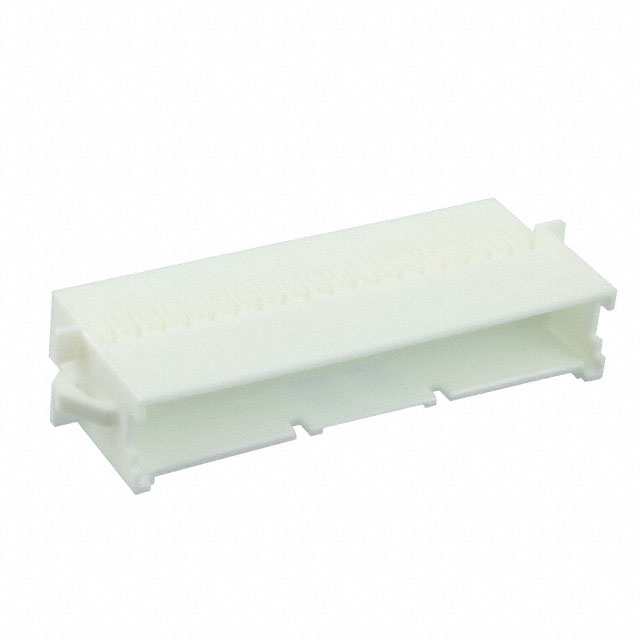

TE Connectivity Raychem Cable Protection 3-1969594-8	Male Pin	White	38	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp
TE Connectivity Raychem Cable Protection 3-1969594-4	Male Pin	White	34	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp

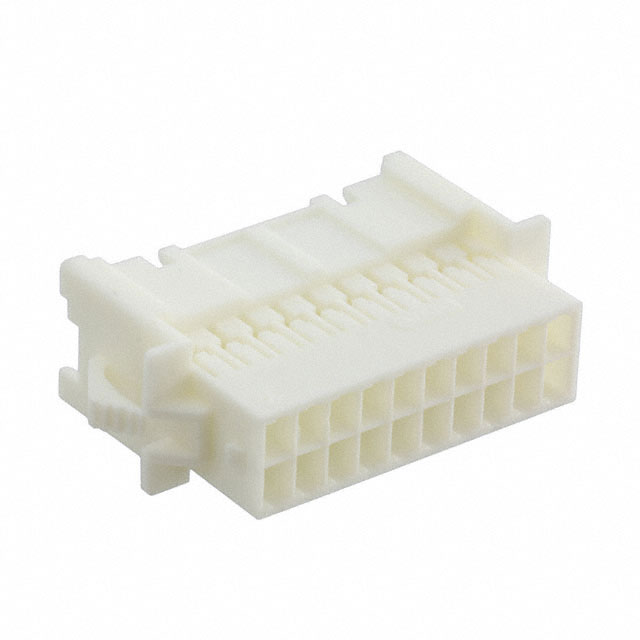

TE Connectivity Raychem Cable Protection 2-1969594-0	Male Pin	White	20	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp

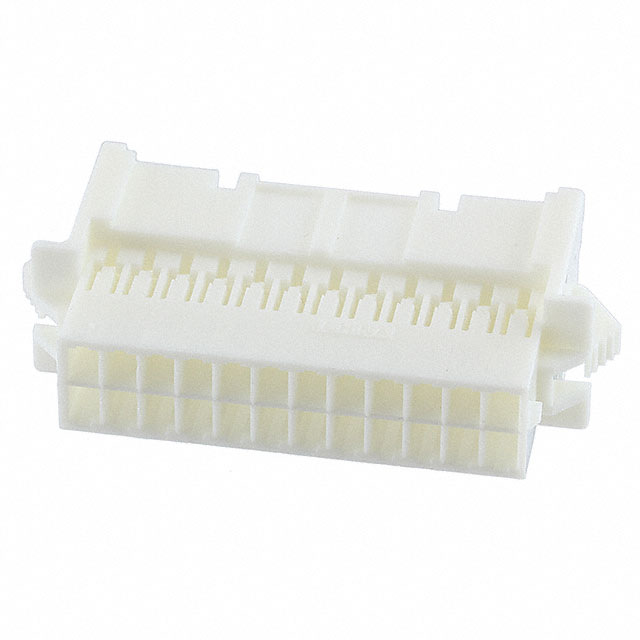

TE Connectivity Raychem Cable Protection 2-1969594-4	Male Pin	White	24	Panel Mount Snap-In	Receptacle	0.098 in	2.5 mm	2	Contacts Not Included	0.098 in	2.5 mm	105 ░C	-55 °C	Nylon Polyamide (PA)	Latch Holder	Crimp
