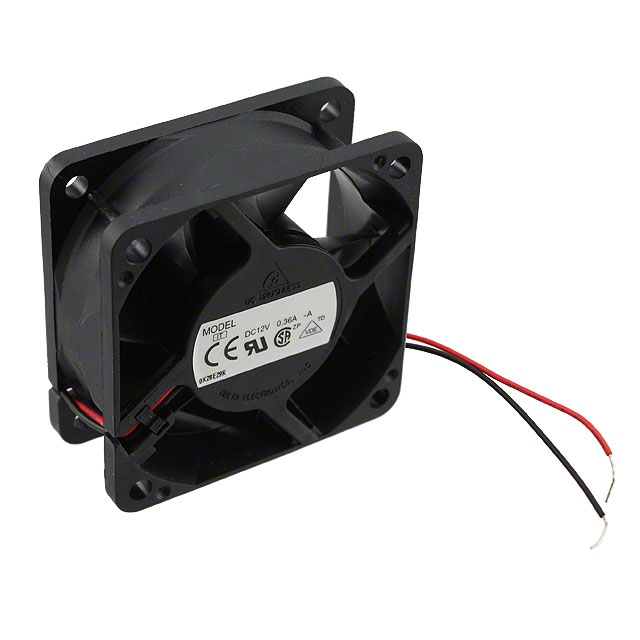

AUB0612 Series

Catalog

FAN AXIAL 60X25.4MM 12VDC

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Noise	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	RPM	Fan Type	Width [y]	Air Flow	Air Flow	Static Pressure	Static Pressure	Approval Agency	Weight [custom]	Weight [custom]	Termination	Bearing Type	Voltage - Rated	Weight	Weight	Weight [custom]	Weight [custom]

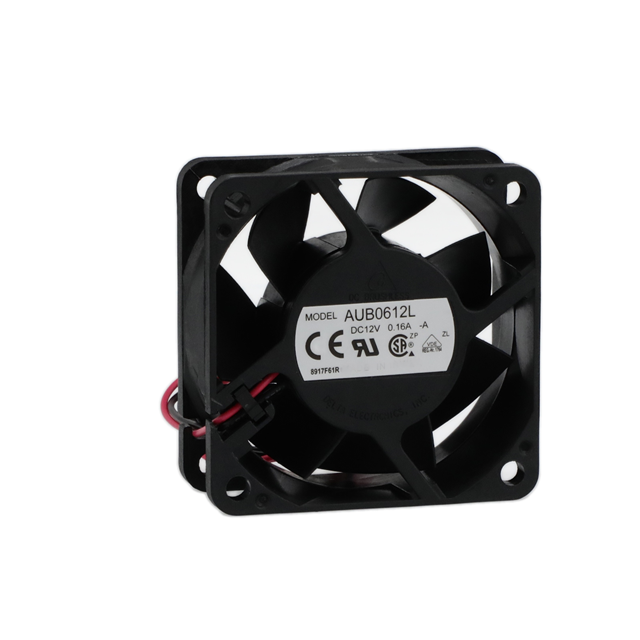

Delta Electronics AUB0612L-A	Plastic	40 °C 50000 Hrs	70 mA	4 VDC	13.8 VDC	Plastic	26.5 dB	60 mm	60 mm	-10 °C	60 °C	840 mW	3100 RPM	Tubeaxial	25.4 mm	13.8 CFM	0.386 mł/min	0.1 in H2O	24.9 Pa	CE CSA UL VDE	60.78 g	0.134 lb	2 Wire Leads	Superflo	12 VDC

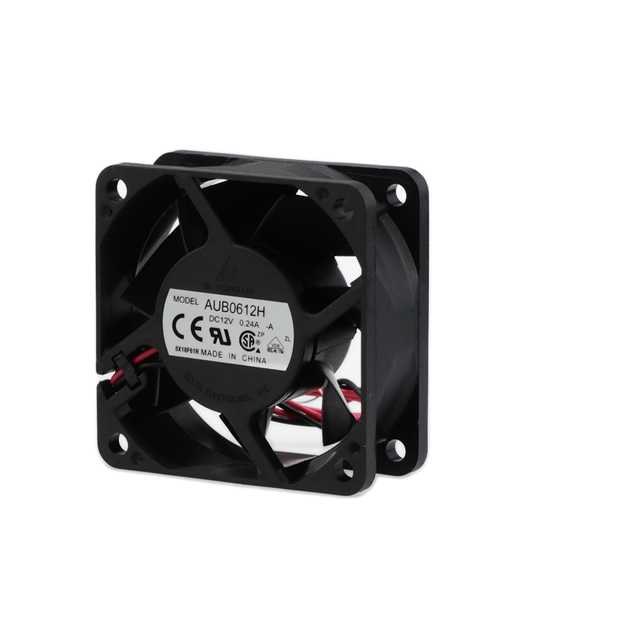

Delta Electronics AUB0612H-A	Plastic	40 °C 50000 Hrs		4 VDC	13.8 VDC	Plastic	34 dB(A)	60 mm	60 mm	-10 °C	60 °C	1.56 W	4200 RPM	Tubeaxial	25.4 mm	23.4 CFM	0.655 m³/min	0.211 in H2O	52.6 Pa	CE CSA UL VDE	60.78 g	0.134 lb	2 Wire Leads	Superflo	12 VDC
Delta Electronics AUB0612VH-AIT	Plastic	40 °C 50000 Hrs	0.24 A	4 VDC	13.8 VDC	Plastic	42.5 dB	60 mm	60 mm	-10 °C	60 °C	2.88 W	5500 RPM	Tubeaxial	25.4 mm	29.3 CFM	0.82 m³/min	0.352 in H2O	87.7 Pa	CE CSA UL VDE			2 Wire Leads	Superflo	12 VDC	68.04 g	0.15 lb
Delta Electronics AUB0612HH-A	Plastic	40 °C 50000 Hrs	0.2 A	4 VDC	13.8 VDC	Plastic	40 dB(A)	60 mm	60 mm	-10 °C	60 °C	2.4 W	5000 RPM	Tubeaxial	25.4 mm	25.4 CFM	0.711 m³/min	0.281 in H2O	70 Pa	CE CSA UL VDE	60.33 g	0.133 lb	2 Wire Leads	Superflo	12 VDC

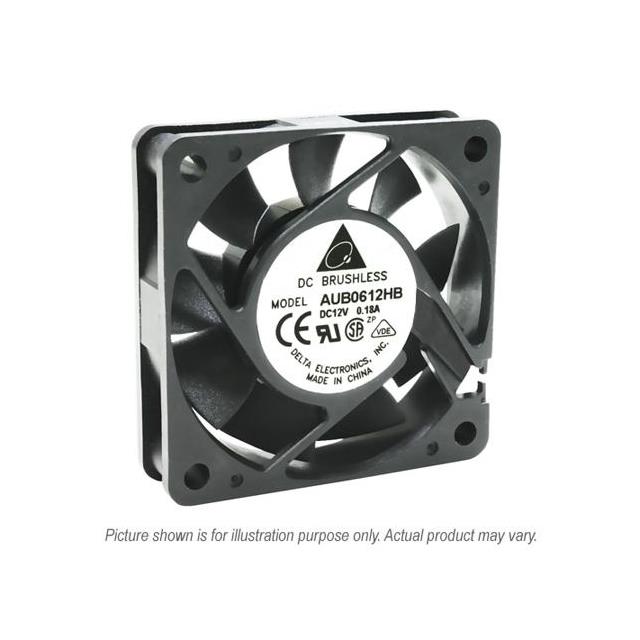

Delta Electronics AUB0612HB-A	Plastic	40 °C 50000 Hrs	60 mA	7 V	12.6 VDC	Plastic	23.5 dB(A)	60 mm	60 mm	-10 °C	60 °C	720 mW	3000 RPM	Tubeaxial	15 mm	15.3 CFM	0.428 m³/min	0.087 in H2O	21.7 Pa	CE cURus TUV			2 Wire Leads	Superflo	12 VDC			0.085 lb	38.56 g

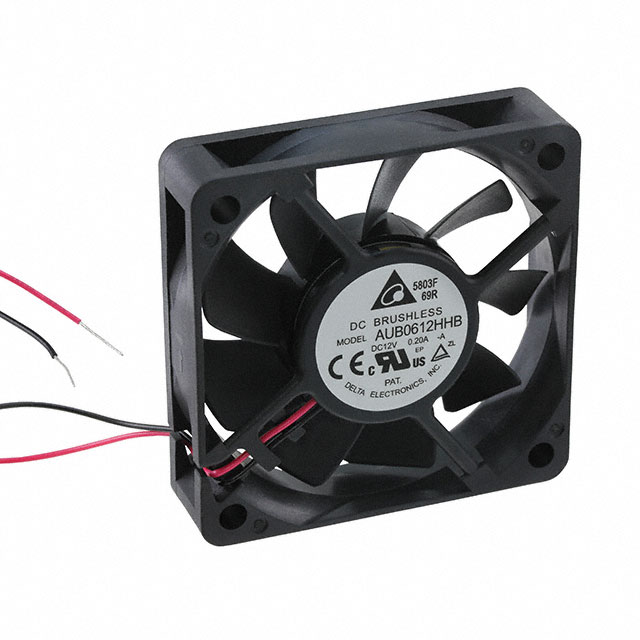

Delta Electronics AUB0612HHB-A	Plastic	40 °C 50000 Hrs		7 V	13.8 VDC	Plastic	33 dB(A)	60 mm	60 mm	-10 °C	60 °C	1.56 W	4500 RPM	Tubeaxial	15 mm	23.4 CFM	0.655 m³/min	0.19 in H2O	47.3 Pa	CE CSA UL VDE			2 Wire Leads	Superflo	12 VDC	38.1 g	0.084 lb
