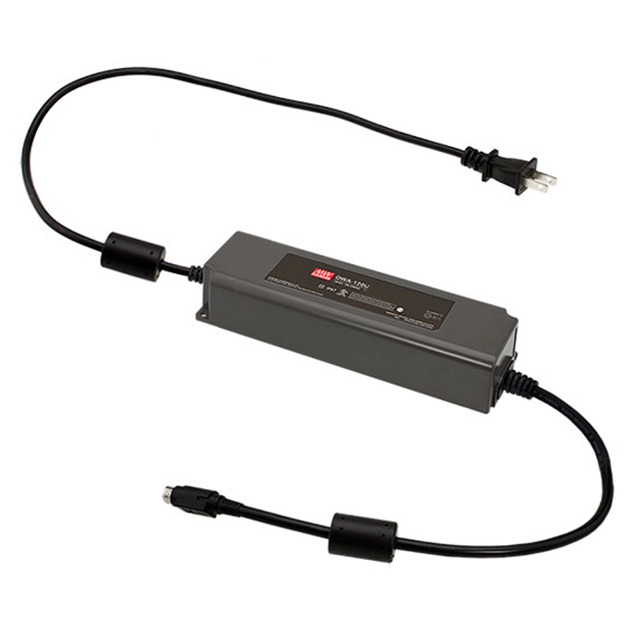

OWA-120U Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 42V 122W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Input Connector | Input Type | No Load Power Consumption | Region Utilized | Approval Agency | Efficiency | Cord Length | Cord Length | Current - Output (Max) [Max] | Output Connector | Form | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 42 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 122 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 2.9 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 48 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 120 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 2.5 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 36 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 122 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 3.4 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 15 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 120 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 8 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 30 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 120 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 4 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 12 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 120 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | 10 A | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | |
MEAN WELL USA Inc. | 70 °C | -40 C | ITE (Commercial) | 24 V | 37.5 mm | 191 mm | 2.48 in | 63 mm | 7.52 in | 1.48 " | 120 W | NEMA 1-15P | Cord | 150 mW | North America | cULus FCC | Level VI | 11.8 " | 0.3 m | Power DIN 4 Pin | Desktop (Class II) | 264 VAC | 90 VAC | 5 A |
