QK015R5TP Series

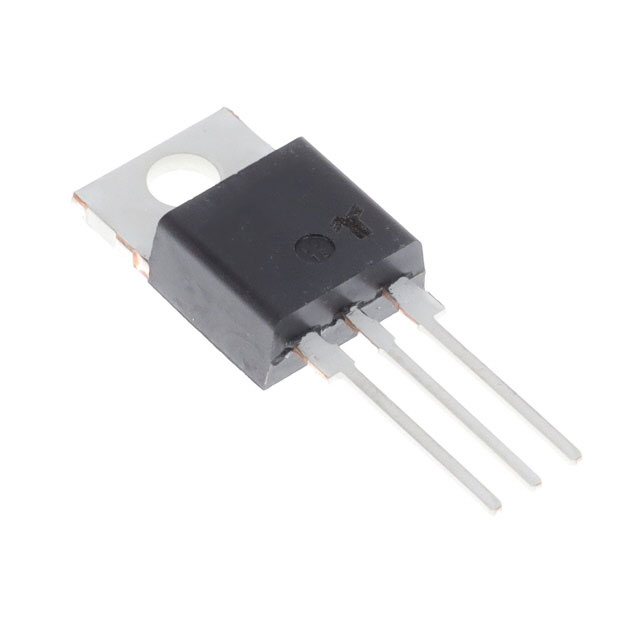

Triac 1000V 15A 50-50-50 mA TO220 Iso

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Triac 1000V 15A 50-50-50 mA TO220 Iso

Part	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type	Voltage - Off State	Triac Type	Supplier Device Package	Package / Case	Configuration
Littelfuse/Commercial Vehicle Products QK015L5	70 mA	-40 °C	125 ¯C	50 mA	2 V	167 A 200 A	Through Hole	1 kV	Standard	TO-220 Isolated Tab	TO-220-3 Isolated Tab	Single
Littelfuse/Commercial Vehicle Products QK015R5	70 mA	-40 °C	125 ¯C	50 mA	2 V	167 A 200 A	Through Hole	1 kV	Standard		TO-220-3	Single
Littelfuse/Commercial Vehicle Products QK015R5TP	70 mA	-40 °C	125 ¯C	50 mA	2 V	167 A 200 A	Through Hole	1 kV	Alternistor - Snubberless	TO-220AB	TO-220-3	Single

Catalog

Triac 1000V 15A 50-50-50 mA TO220 Iso

Key Features

• RoHS Compliant

• Glass - passivated junctions

• Voltage capability up to 1000 V

• Surge capability up to 200 A

• Electrically isolated package "L - Package" and UL recognized for 2500Vrms

• Solid-state switching eliminates arcing or contact bounce that create voltage transients

• No contacts to wear out from reaction of switching events

• Restricted (or limited) RFI generation, depending on activation point sine wave

• Requires only a small gate activation pulse in each half-cycle

Description

15 Amp and 16 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type devices normally operate in Quadrants I & III triggered from AC line.Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.
