DEHR33D Series

Catalog

CAP CER 1000PF 2KV RADIAL

Part	Applications	Voltage - Rated	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Mounting Type	Lead Style	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max]

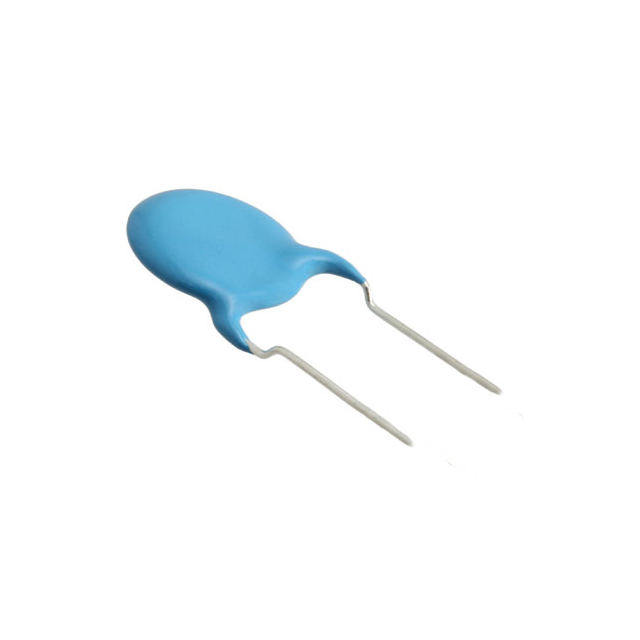

Murata Electronics DEHR33D102KN3A	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.472 "	12 mm	0.001 µF	15 mm	0.591 "	High Voltage Low Dissipation Factor

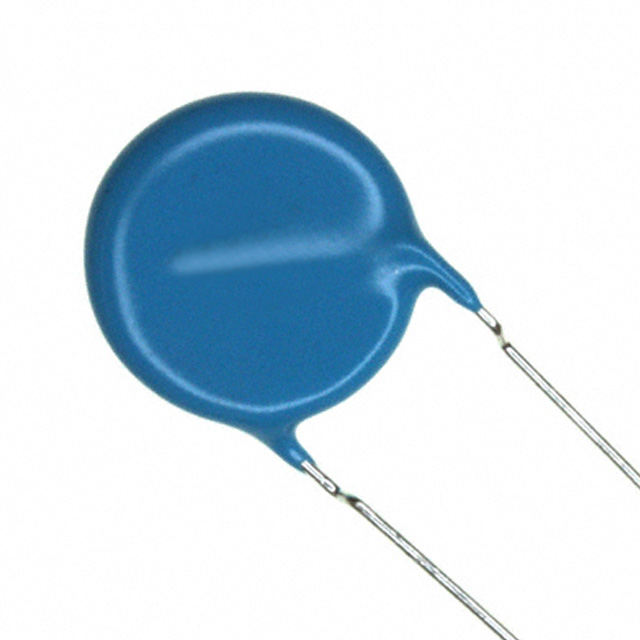

Murata Electronics DEHR33D221KP3A	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Straight	Disc Radial	0.276 in	7 mm	220 pF			High Voltage Low Dissipation Factor	10 mm	0.394 in
Murata Electronics DEHR33D222KN7A	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.591 in		2200 pF	18 mm	0.709 in	High Voltage Low Dissipation Factor			15 mm
Murata Electronics DEHR33D471KN3A	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.354 in	9 mm	470 pF			High Voltage Low Dissipation Factor		0.472 in		12 mm
Murata Electronics DEHR33D471KB3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.354 in	9 mm	470 pF			High Voltage Low Dissipation Factor		0.472 in		12 mm
Murata Electronics DEHR33D222KB3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.591 in		2200 pF	18 mm	0.709 in	High Voltage Low Dissipation Factor			15 mm
Murata Electronics DEHR33D102KA3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.472 "	12 mm	0.001 µF	15 mm	0.591 "	High Voltage Low Dissipation Factor
Murata Electronics DEHR33D272KA3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.669 in	17 mm	2700 pF			High Voltage Low Dissipation Factor	0.787 in				20 mm
Murata Electronics DEHR33D222KA3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Formed Leads	Disc Radial	0.591 in		2200 pF	18 mm	0.709 in	High Voltage Low Dissipation Factor			15 mm
Murata Electronics DEHR33D221KC3B	General Purpose	2000 V	2 kV	-25 °C	125 °C	0.295 in	7.5 mm	R	10 %	Through Hole	Straight	Disc Radial	0.276 in	7 mm	220 pF			High Voltage Low Dissipation Factor	10 mm	0.394 in
