9043-1523 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

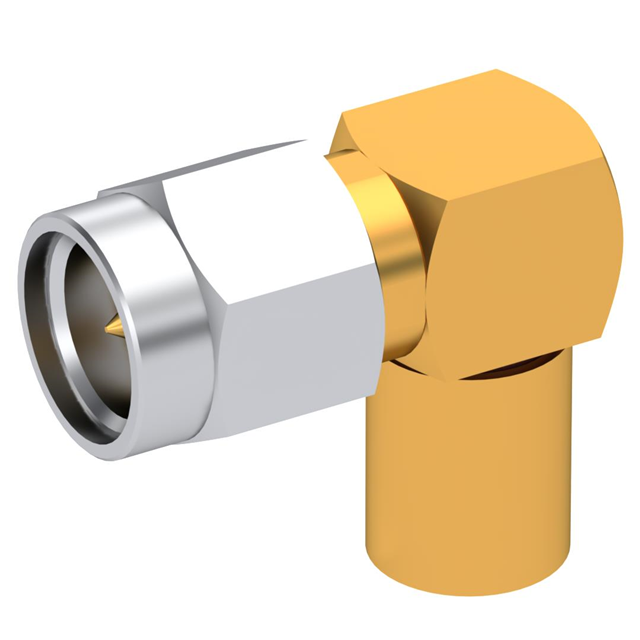

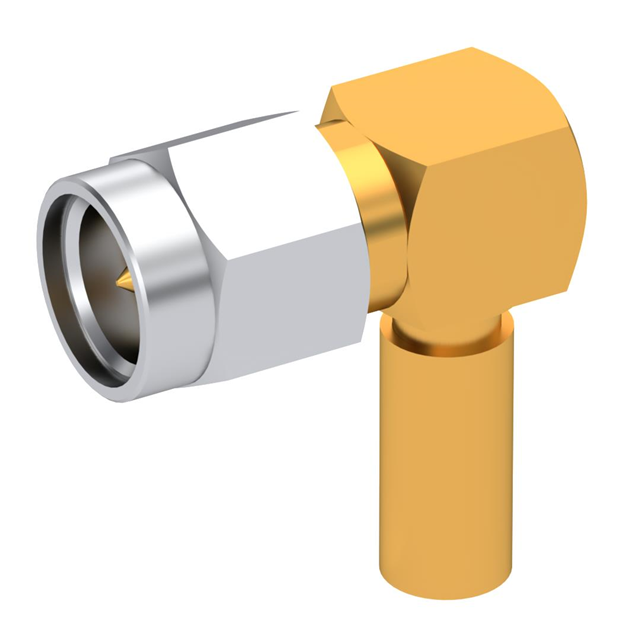

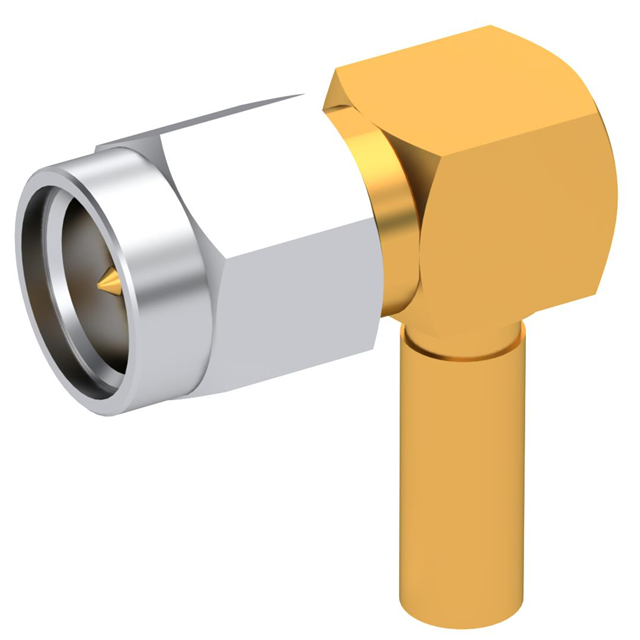

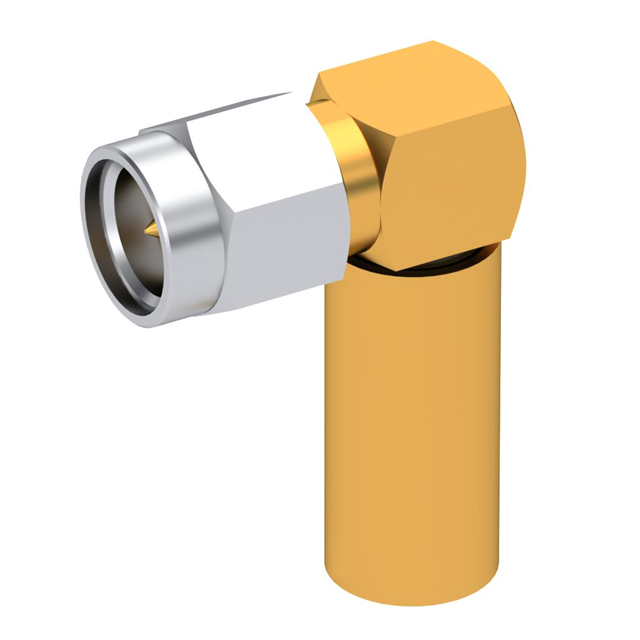

SMA / RIGHT ANGLE PLUG MALE CRIM
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Body Material | Dielectric Material | Mating Cycles | Shield Termination | Connector Style | Impedance | Housing Color | Fastening Type | Connector Type | Center Contact Material | Number of Ports | Contact Termination | Mounting Type | Cable Group | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | -65 ░C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Crimp | SMA | 50 Ohms | Gold | Threaded | Plug Male Pin | Beryllium Copper | 1 | Crimp | Free Hanging (In-Line) Right Angle | 142 223 RG-55 | 12.4 GHz | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Crimp | SMA | 50 Ohms | Gold | Threaded | Plug Male Pin | Brass | 1 | Crimp | Free Hanging (In-Line) Right Angle | RG-178 | 18 GHz | 196 | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Crimp | SMA | 50 Ohms | Gold | Threaded | Plug Male Pin | Beryllium Copper | 1 | Crimp | Free Hanging (In-Line) Right Angle | RD-316 RG-316DS | 18 GHz | ||
 Radiall USA, Inc. | 250 V | -65 ░C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Crimp | SMA | 50 Ohms | Gold | Threaded | Plug Male Pin | Beryllium Copper | 1 | Crimp | Free Hanging (In-Line) Right Angle | RG-316DS | 18 GHz | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Gold | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Crimp | SMA | 50 Ohms | Gold | Threaded | Plug Male Pin | Beryllium Copper | 1 | Crimp | Free Hanging (In-Line) Right Angle | RG-58 | 18 GHz | 141 |
