1106-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

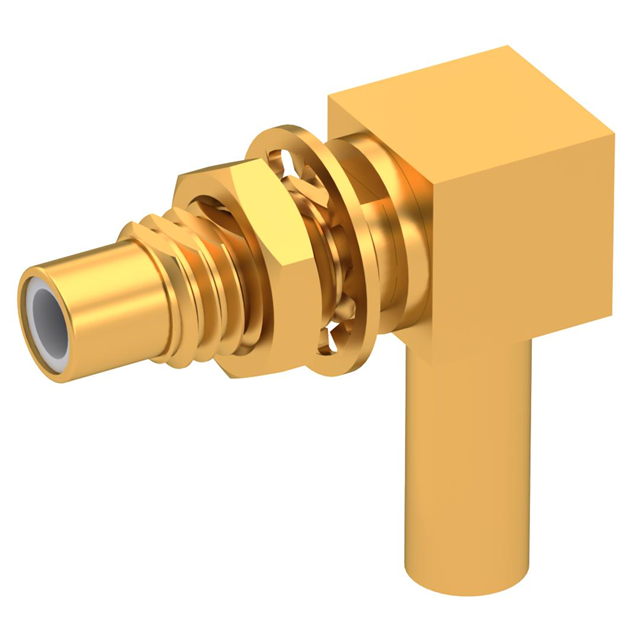

SMC M RA NA CR 2.6/50S
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Material | Mating Cycles | Body Finish | Includes | Voltage Rating | Dielectric Material | Center Contact Plating | Number of Ports | Mounting Feature | Mounting Type | Cable Group | Housing Color | Connector Style | Fastening Type | Contact Termination | Impedance | Frequency - Max [Max] | Connector Type | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 0.5 dB | Brass | 500 | Gold | 1 Connector 1 Lockwasher 1 Nut | 335 V | Polytetrafluoroethylene (PTFE) | Gold | 1 | Bulkhead - Front Side Nut | Panel Mount Right Angle | RG-174 RG-179 RG-316 | Gold | SMC | Threaded | Crimp | 50 Ohms | 10 GHz | Jack Male Pin | Brass | Crimp |
