638-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K

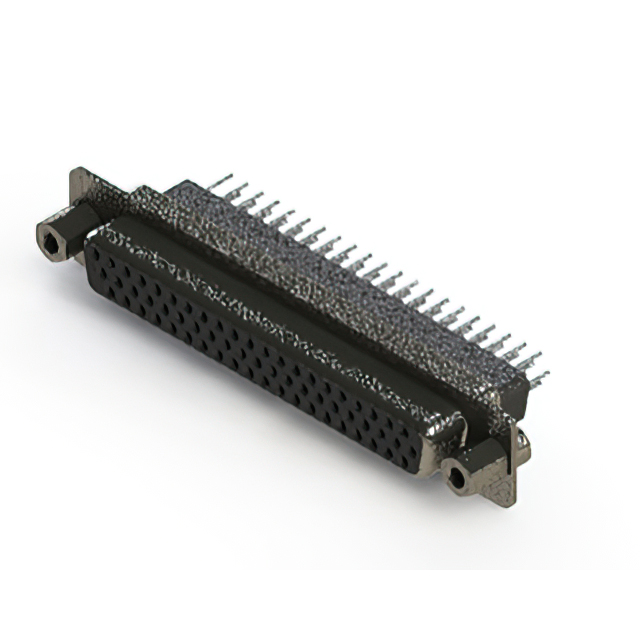

CONN D-SUB HD RCPT 62P VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Termination | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Mounting Type | Contact Type | Number of Positions | Connector Style | Current Rating (Amps) | Connector Type | Contact Finish | Contact Finish Thickness | Flange Feature | Number of Rows [custom] | Features | Shell Material, Finish | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Solder | UL94 V-0 | C DC | 4 | Through Hole | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Flash | 4-40 Mating Side Female Screwlock | 3 | Shielded | ||||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Solder | UL94 V-0 | C DC | 4 | Through Hole | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Flash | 4-40 Mating Side Female Screwlock | 3 | Board Lock Shielded | Nickel Plated Steel | |||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | UL94 V-0 | C DC | 4 | Free Hanging (In-Line) | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Flash | Housing/Shell | 3 | Shielded | Nickel Plated Steel | 4-40 | |||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | UL94 V-0 | C DC | 4 | Free Hanging (In-Line) | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Flash | 4-40 Mating Side Female Screwlock | 3 | Board Lock Shielded | Nickel Plated Steel | ||||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | UL94 V-0 | C DC | 4 | Free Hanging (In-Line) | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Flash | Housing/Shell | 3 | Shielded | 4-40 | ||||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Solder | UL94 V-0 | C DC | 4 | Through Hole | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Housing/Shell | 3 | Board Lock Shielded | 4-40 | 0.38 µm | 15 µin | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | UL94 V-0 | C DC | 4 | Free Hanging (In-Line) | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Housing/Shell (Unthreaded) | 3 | Shielded | 0.76 Ám | 30 Áin | ||||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | UL94 V-0 | C DC | 4 | Free Hanging (In-Line) | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Housing/Shell | 3 | Shielded | 4-40 | 0.38 µm | 15 µin | |||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | Solder | UL94 V-0 | C DC | 4 | Through Hole | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Housing/Shell | 3 | Shielded | Nickel Plated Steel | 4-40 | 0.76 Ám | 30 Áin | |
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | Solder | UL94 V-0 | C DC | 4 | Through Hole | Signal | 62 | D-Sub High Density | 3 A | Receptacle Female Sockets | Gold | Housing/Shell (Unthreaded) | 3 | Shielded | 0.76 Ám | 30 Áin |
