2108971 Series

Catalog

FPC ANT, MHF 4L, 150MM, UWB 3~8.5 GHZ

Part	Number of Bands	Termination	Gain	Applications	Power - Max [Max]	Antenna Type	Features	VSWR	Frequency Group	Mounting Type	RF Family/Standard	Frequency (Center/Band)	Height (Max)	Height (Max) [Max]	VSWR [Max]	VSWR [Min]	Features
TE Connectivity Raychem Cable Protection 2108971-7	2	MHF4L	1.2 dBi 3.6 dBi	UWB	10 W	Flat Patch	Cable - 150mm	2	Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in
TE Connectivity Raychem Cable Protection 2108971-3	2	MHF	1.3 dBi 3.8 dBi	UWB	10 W	Flat Patch	Cable - 150mm		Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in	2	1.7

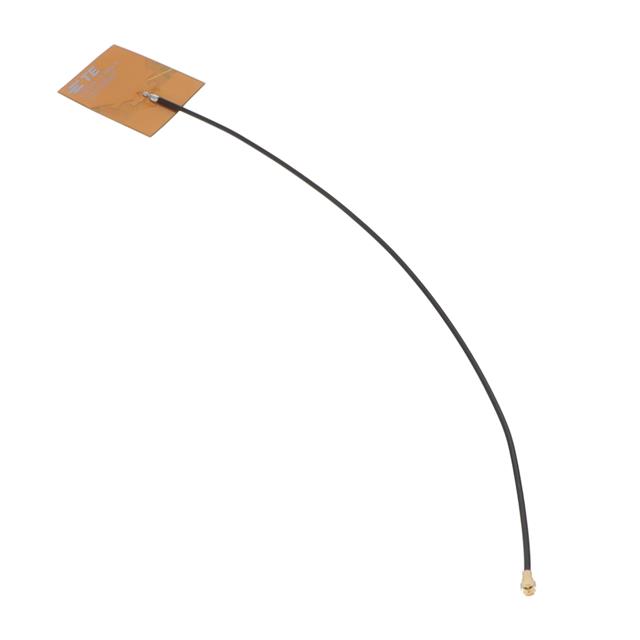

TE Connectivity Raychem Cable Protection 2108971-4	2	MHF	1.1 dBi 3.5 dBi	UWB	10 W	Flat Patch	Cable		Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in	1.7	1.6	200 mm

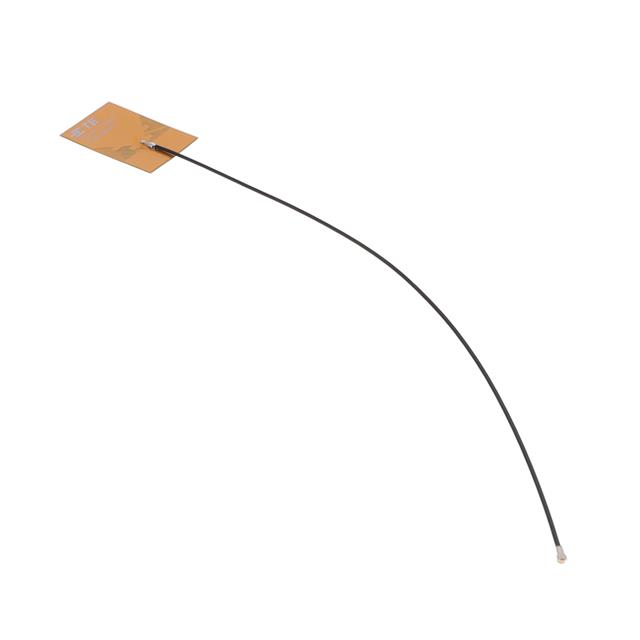

TE Connectivity Raychem Cable Protection 2108971-8	2	MHF4L		UWB	10 W	Flat Patch	Cable		Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in			200 mm
TE Connectivity Raychem Cable Protection 2108971-5	2	MHF4L	1.7 dBi 4.3 dBi	UWB	10 W	Flat Patch	Cable	1.8 2.2	Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in			50 mm

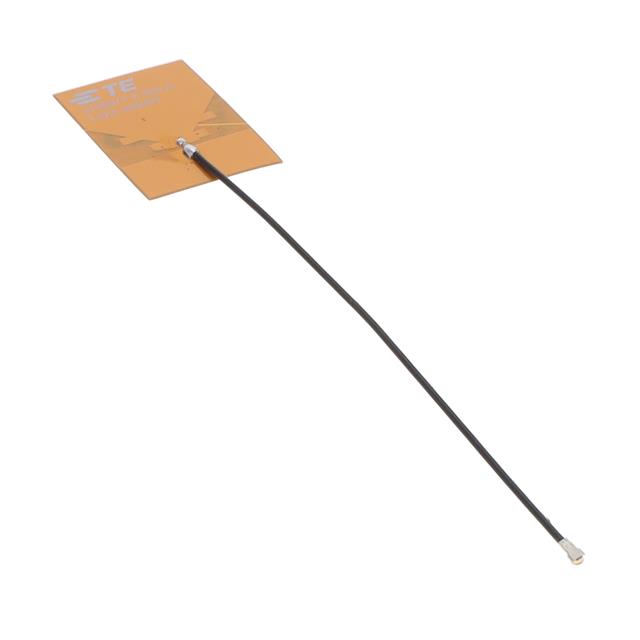

TE Connectivity Raychem Cable Protection 2108971-6	2	MHF4L	1.4 dBi 3.9 dBi	UWB	10 W	Flat Patch	Cable	1.9 2.1	Wide Band	Adhesive	Ultra Wide Band	4.05 GHz 7.2 GHz	0.15 mm	0.006 in			100 mm
