3261 Series

Catalog

CONN TERM RECT 500 MCM

Part	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Terminal Type	Width - Outer Edges	Width - Outer Edges	Wire Gauge	Wire Gauge	Contact Material	Terminal Style	Contact Finish	Tab Thickness	Tab Thickness	Mounting Type	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Termination	Insulation	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]

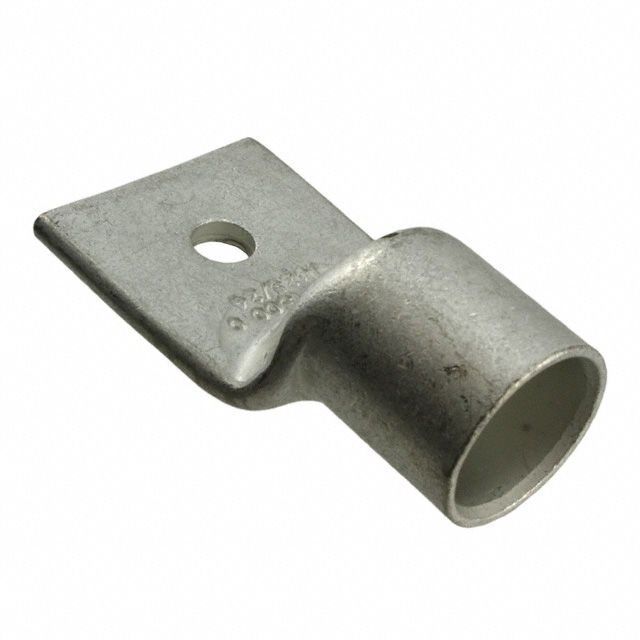

TE Connectivity Raychem Cable Protection 326103	9.91 mm	0.39 in	Standard	45.72 mm	1.8 "	500 kcmil	500 kcmil	Copper	Single Stud Hole	Tin	5.08 mm	0.2 in	Free Hanging (In-Line)	0.981 in	24.92 mm	Crimp	Non-Insulated	83.57 mm	3.29 in
TE Connectivity Raychem Cable Protection 326113			Rectangular Tongue			500 kcmil	500 kcmil	Copper	No Stud Hole	Tin	2.01 mm	0.079 in	Free Hanging (In-Line)	0.039 in	0.98 mm	Barrel Crimp	Non-Insulated	4.04 mm	0.159 in	0.048 in	1.22 mm
