CXM-4-40 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

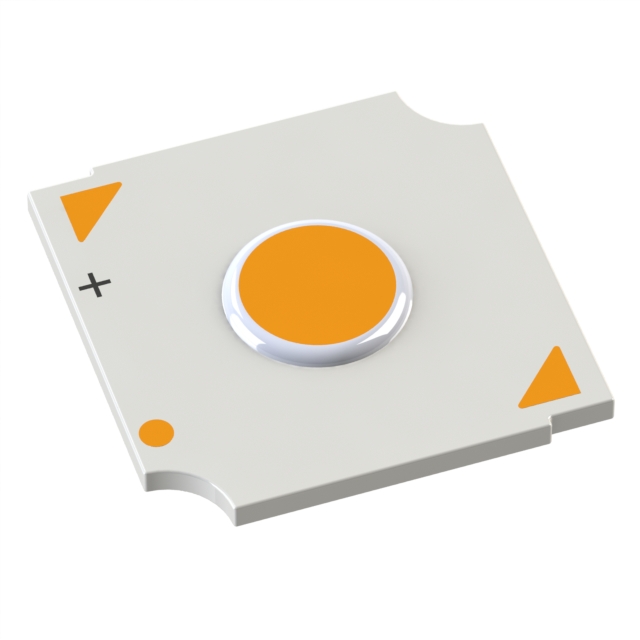

LED COB CXM-4 NEUT WHT SQU 4000K
| Part | CCT (K) | CCT (K) | Luminous Flux @ Current/Temperature | Current - Max [Max] | Size / Dimension [y] | Size / Dimension [x] | Configuration | Temperature - Test | Height [z] | Voltage - Forward (Vf) (Typ) | Current - Test | Lens Type | Light Emitting Surface (LES) [diameter] | Viewing Angle | Color | Type | Lumens/Watt @ Current - Test | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 4000 K | 3-Step MacAdam Ellipse | 500 lm | 400 mA | 13.5 mm | 13.5 mm | Square | 25 °C | 1.37 mm | 33.8 V | 120 mA | Flat | 4.5 mm | 120 ° | Neutral White | Chip On Board (COB) | 123 lm/W | 90 |
Luminus Devices Inc. | 4000 K | 3-Step MacAdam Ellipse | 455 lm | 400 mA | 13.5 mm | 13.5 mm | Square | 25 °C | 1.37 mm | 33.8 V | 120 mA | Flat | 4.5 mm | 120 ° | Neutral White | Chip On Board (COB) | 112 lm/W | 95 |
