1325A Series
Manufacturer: Belden Inc.
Beta
⌘K

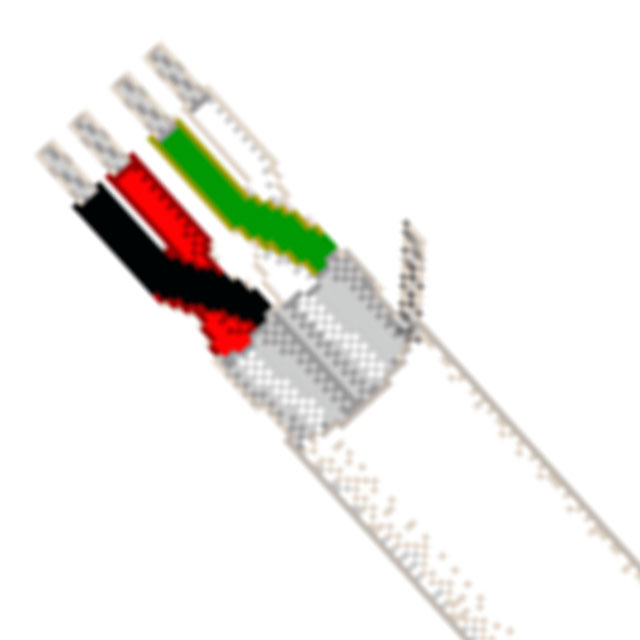

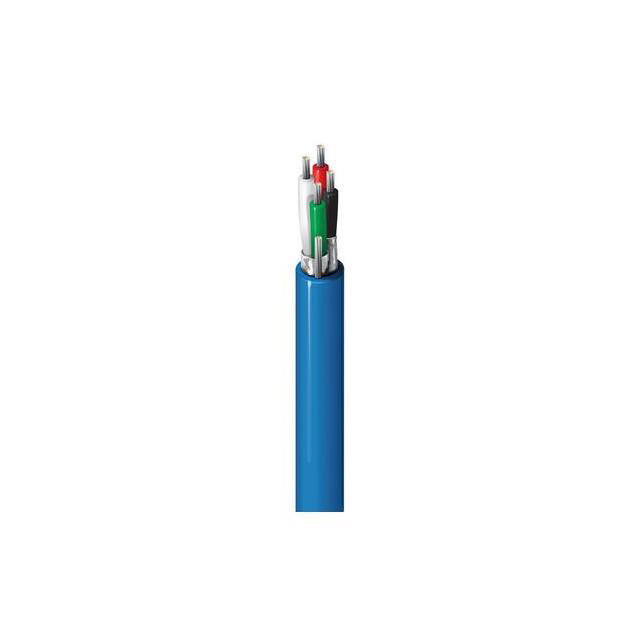

MULTI-PAIR 4COND 22AWG BLU
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Features | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Ratings | Jacket Color | Length | Length | Wire Gauge | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 75 ░C | 0 °C | 300 VDC | Drain Wire Flame Retardant | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 4 | 0.158 in | 4.01 mm | Foil | UL Style CMP | Blue | 304.8 m | 1000 ft | 22 AWG | Copper Tinned | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Multi-Pair |
 Belden Inc. | 100 % | Aluminum | 75 ░C | 0 °C | 300 VDC | Drain Wire Flame Retardant | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 4 | 0.158 in | 4.01 mm | Foil | UL Style CMP | Black | 304.8 m | 1000 ft | 22 AWG | Copper Tinned | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Multi-Pair |
Belden Inc. | 100 % | Aluminum | 75 ░C | 0 °C | Drain Wire Flame Retardant | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 4 | 0.158 in | 4.01 mm | Foil | UL Style CMP | White | 304.8 m | 1000 ft | 22 AWG | Copper Tinned | 30 AWG | 7 | Poly-Vinyl Chloride (PVC) | Multi-Pair |
