102699 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 10POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Style	Contact Shape	Contact Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Post	Number of Rows [custom]	Insulation Color	Shrouding	Contact Length - Mating	Contact Length - Mating	Mounting Type	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]
TE Connectivity AMP Connectors 5-102699-4	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	10	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

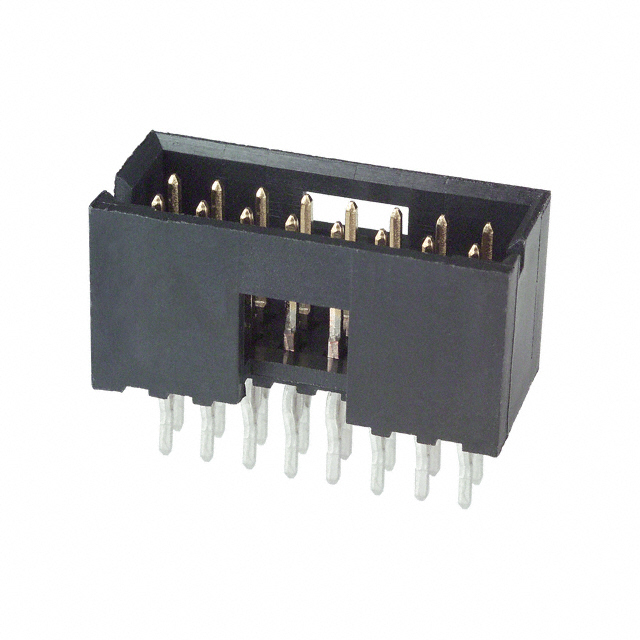

TE Connectivity AMP Connectors 102699-7	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	16	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm
TE Connectivity AMP Connectors 6-102699-9	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	40	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

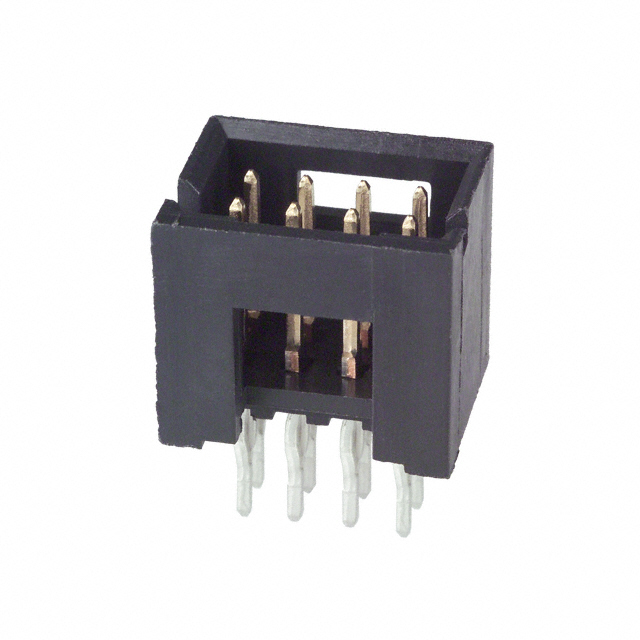

TE Connectivity AMP Connectors 102699-3	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	8	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

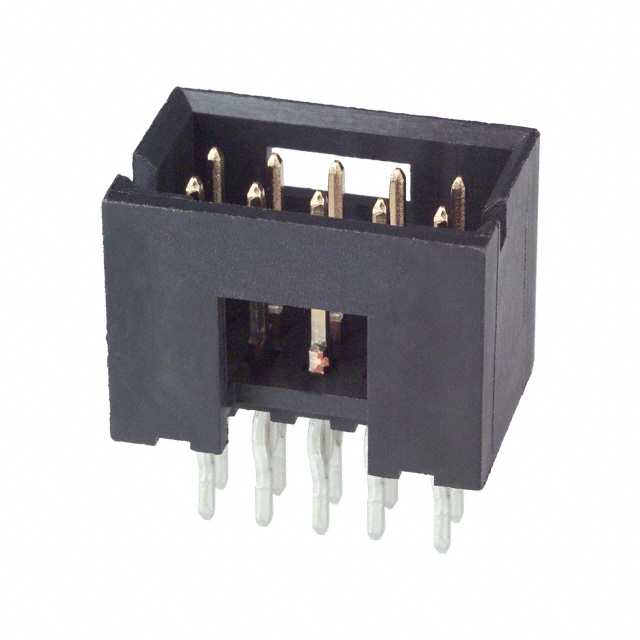

TE Connectivity AMP Connectors 102699-4	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	10	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

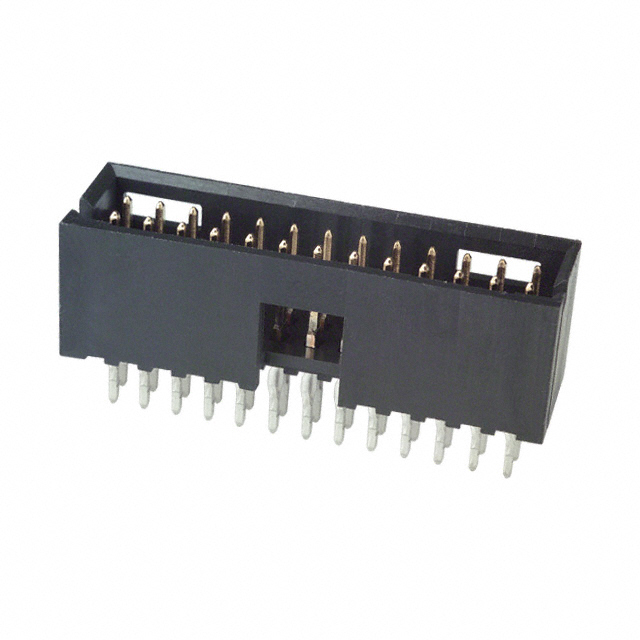

TE Connectivity AMP Connectors 1-102699-2	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	26	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

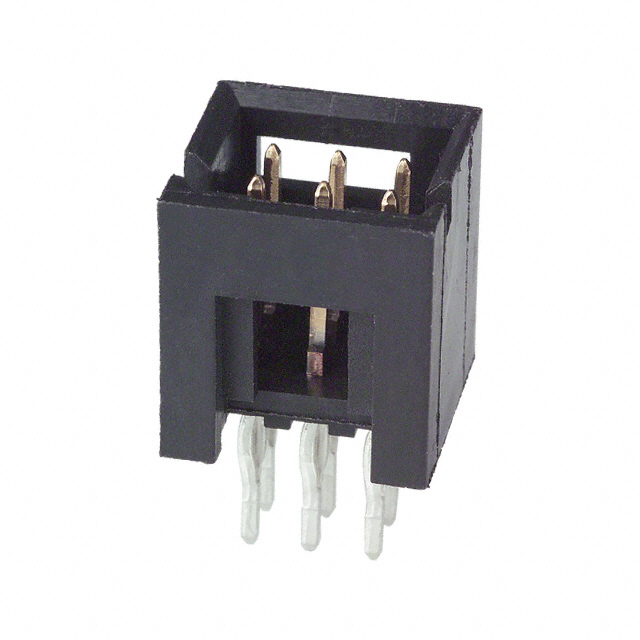

TE Connectivity AMP Connectors 5-102699-2	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	6	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

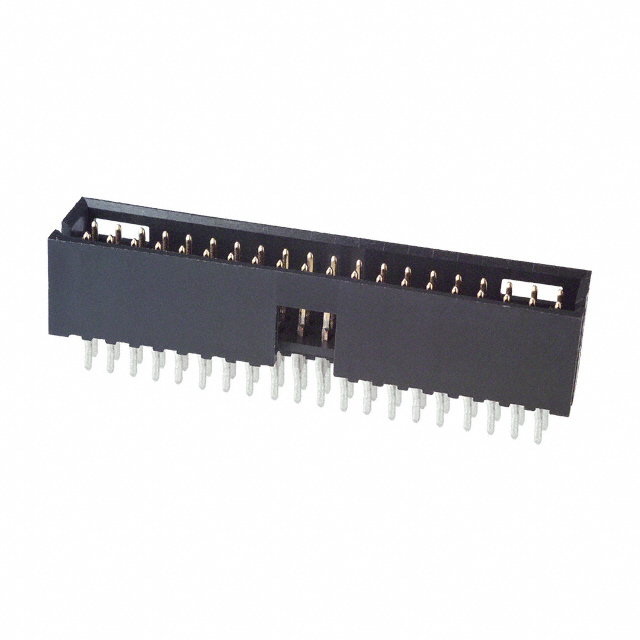

TE Connectivity AMP Connectors 1-102699-9	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	40	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm

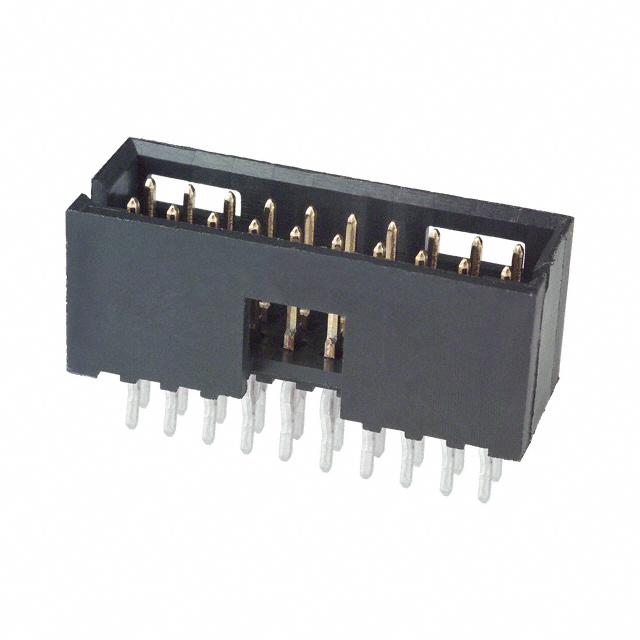

TE Connectivity AMP Connectors 102699-9	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	20	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin-Lead	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm
TE Connectivity AMP Connectors 6-102699-2	2.54 µm	100 µin	Gold	Board to Board Cable	Square	Male Pin	Thermoplastic	-55 C	105 ░C	Header	26	3 A	UL94 V-0	0.1 "	2.54 mm	0.76 Ám	30 Áin	Copper Alloy	Tin	2	Black	Shrouded - 4 Wall	0.32 in	8.13 mm	Through Hole	0.66 in	16.76 mm	Detent Lock	6.35 mm	0.25 in	All	Press-Fit Solder	0.44 in	11.18 mm	0.1 in	2.54 mm
