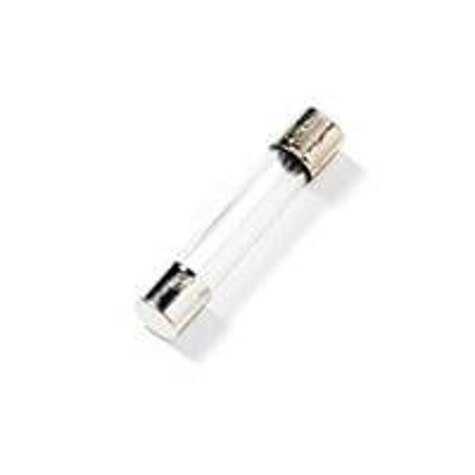

FUSE 250V FA 3AG Pb-FREE .100A
Description
AI
The 3AG Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V FA 3AG Pb-FREE .100A
FUSE 250V FA 3AG Pb-FREE .100A
| Part | Fuse Type | Approval Agency | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case [y] | Package / Case [x] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Mounting Type | Response Time | Voltage Rating - AC | Melting I²t | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Cartridge Glass | CE CSA UL | 150 mA | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.0055 | ||
 LITTELFUSE | Cartridge Glass | CE CSA UL | 0.3 A | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.0689 | ||
LITTELFUSE | Cartridge Glass | CE CSA UL | 100 mA | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.00102 | ||
 LITTELFUSE | Cartridge Glass | CE CSA UL | 175 mA | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.0096 | 3.875 Ohms | |
 LITTELFUSE | Cartridge Glass | CE CSA KC PSE UL | 4 A | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 200 A | Requires Holder | Fast Blow | 250 V | 28.5 | ||
LITTELFUSE | Cartridge Glass | CE CSA UL | 100 mA | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.00102 | ||
 LITTELFUSE | Cartridge Glass | CE CSA UL | 375 mA | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 35 A | Requires Holder | Fast Blow | 250 V | 0.185 | 0.825 Ohms | |
 LITTELFUSE | Cartridge Glass | CE CSA KC PSE UL | 6 A | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 200 A | Requires Holder | Fast Blow | 250 V | 118 | ||
LITTELFUSE | Cartridge Glass | CE CSA KC PSE UL | 1.6 A | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 100 A | Requires Holder | Fast Blow | 250 V | 2.8 I²t | ||
LITTELFUSE | Cartridge Glass | CE CSA KC PSE UL | 2.5 A | 31.75 mm | 1.25 in | 6.35 mm | 0.25 " | 0.25 in | 3AB 3AG | -55 C | 125 °C | 100 A | Requires Holder | Fast Blow | 250 V | 9.54 I²t |
