RV1S9162 Series

Catalog

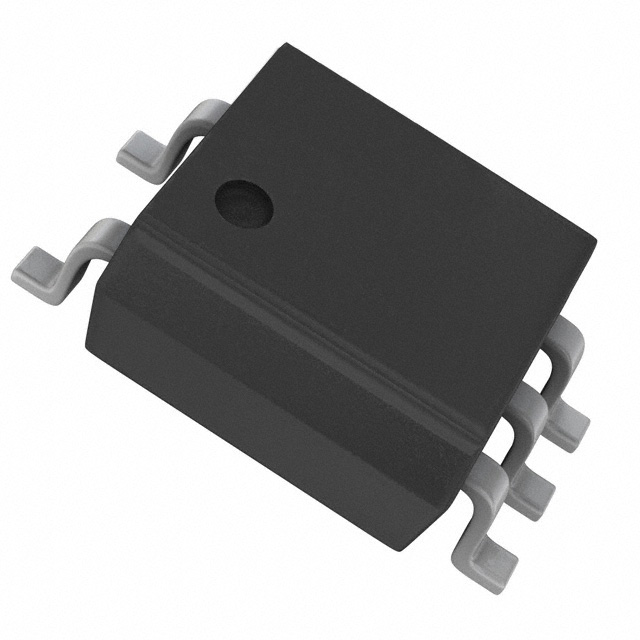

OPTOCOUPLER, GATE DRIVE, 3.75KV, SOP-5 ROHS COMPLIANT: YES

Part	Mounting Type	Voltage - Isolation	Common Mode Transient Immunity (Min) [Min]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels [custom]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Supplier Device Package	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Data Rate	Package / Case	Package / Case	Inputs - Side 1/Side 2 [custom]
Renesas Electronics Corporation RV1S9162ACCSP-100C#SC0	Surface Mount	3750 Vrms	100 V/ns	Push-Pull Totem Pole	30 VDC	4.5 V	1	20 mA	125 °C	-40 C	DC	1.54 V	25 mA	5-SO	60 ns	60 ns	15 Mbps	6-SOIC	0.173 " 4.4 mm Width 5 Leads	1
Renesas Electronics Corporation RV1S9162ACCSP-100V#KC0	Surface Mount	3750 Vrms	100 V/ns	Push-Pull Totem Pole	30 VDC	4.5 V	1	20 mA	125 °C	-40 C	DC	1.54 V	25 mA	5-SO	60 ns	60 ns	15 Mbps	6-SOIC	0.173 " 4.4 mm Width 5 Leads	1
Renesas Electronics Corporation RV1S9162ACCSP-100V#SC0	Surface Mount	3750 Vrms	100 V/ns	Push-Pull Totem Pole	30 VDC	4.5 V	1	20 mA	125 °C	-40 C	DC	1.54 V	25 mA	5-SO	60 ns	60 ns	15 Mbps	6-SOIC	0.173 " 4.4 mm Width 5 Leads	1
