6TAB Series

Catalog

POSCAP, TA SERIES ROHS COMPLIANT: YES

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Features	Manufacturer Size Code	Mounting Type	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	ESR (Equivalent Series Resistance)	Type	Package / Case	Package / Case	Capacitance

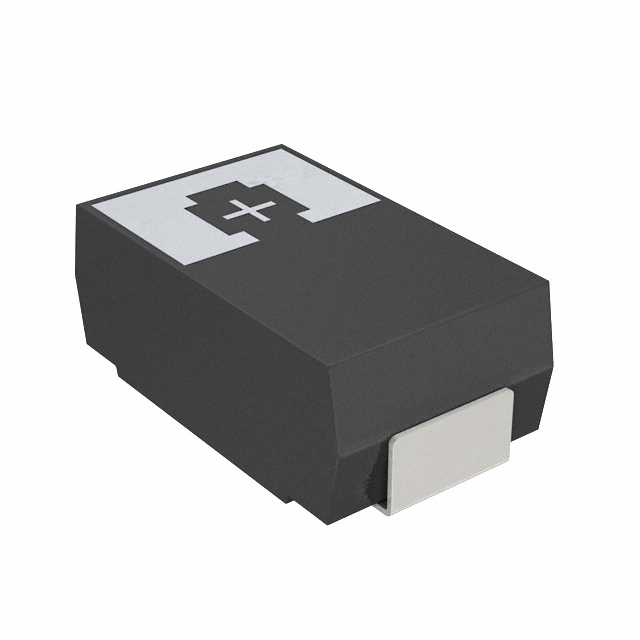

Panasonic Electronic Components 6TAB68M	-55 C	105 ░C	3.5 mm	0.11 "	2.8 mm	0.138 in	20 %	General Purpose	B2	Surface Mount	1000 Hrs	2.1 mm	0.083 in	6.3 VDC	70 mOhm	Molded	3528 Metric	1411	68 µF
