45543 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

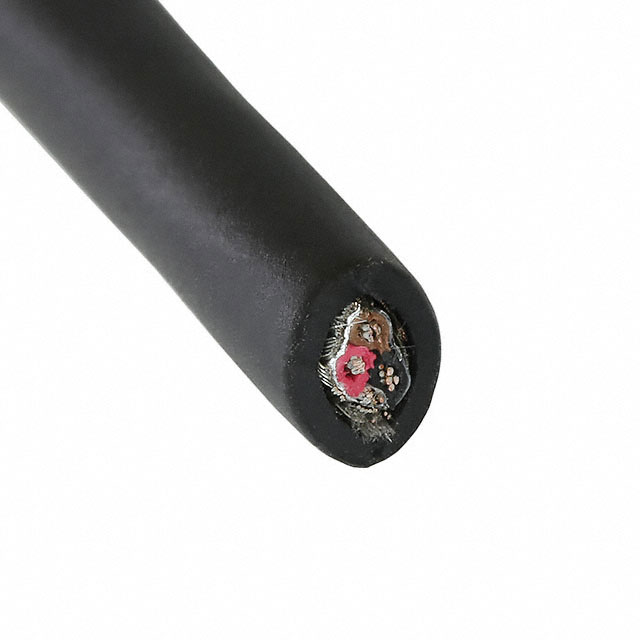

CABLE 3COND 14AWG BLK SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket Color | Cable Type | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Insulation | Conductor Insulation | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Conductor Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Aluminum Suprashield® | Black | Multi-Conductor | Braid Foil | 125 °C | -50 °C | 30 | 14 | 14.5 AWG | 304.8 m | 1000 ft | 11.18 mm | 0.44 " | 600 V | TPE | Thermoplastic Elastomer | Biological Compatibility Drain Wire Rip Cord | 1.397 mm | 0.055 in | Thermoplastic Elastomer (TPE) | 3 | Copper Tinned | ISO 10993 |
