305-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 56POS 0.156

Part	Material - Insulation	Termination Rows [custom]	Color	Contact Material	Card Type	Number of Positions/Bay/Row	Termination	Gender	Read Out	Number of Positions	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Type	Features
EDAC Inc. 305-056-500-578	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder Eyelet(s)	Female	Dual	56	Panel Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows

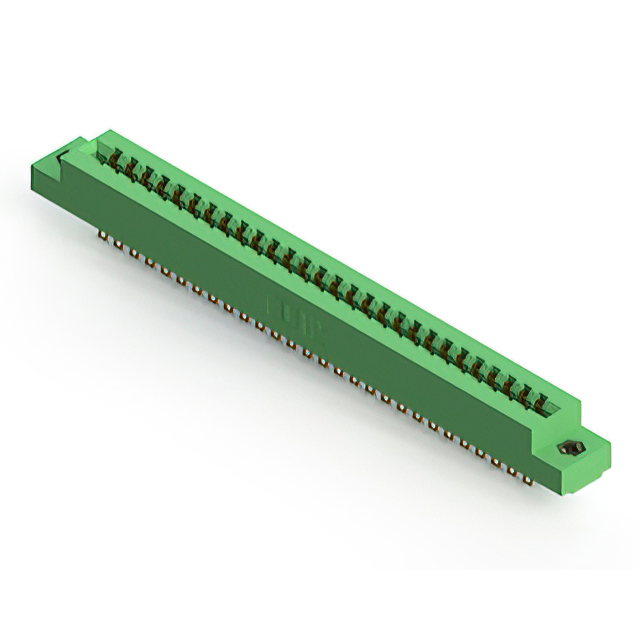

EDAC Inc. 305-056-555-208	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Board Edge Straddle Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows	Card Extender

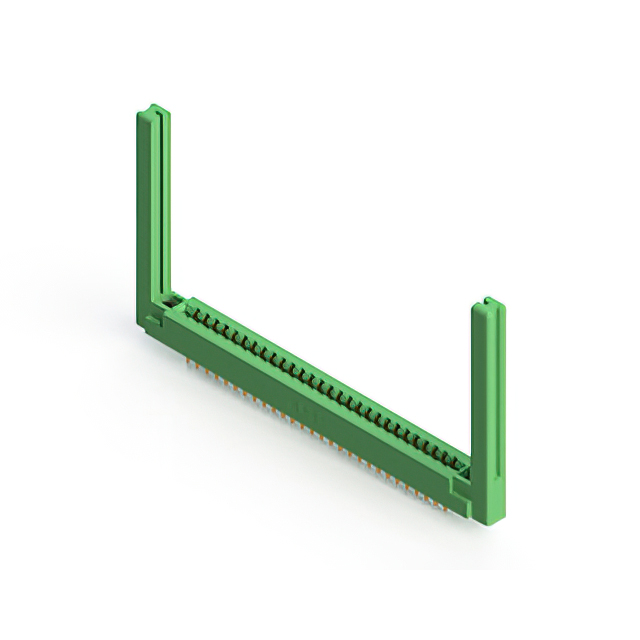

EDAC Inc. 305-056-520-258	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Panel Mount Through Hole	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows
EDAC Inc. 305-056-556-207	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Board Edge Straddle Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows	Card Extender
EDAC Inc. 305-056-500-568	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder Eyelet(s)	Female	Dual	56	Panel Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows

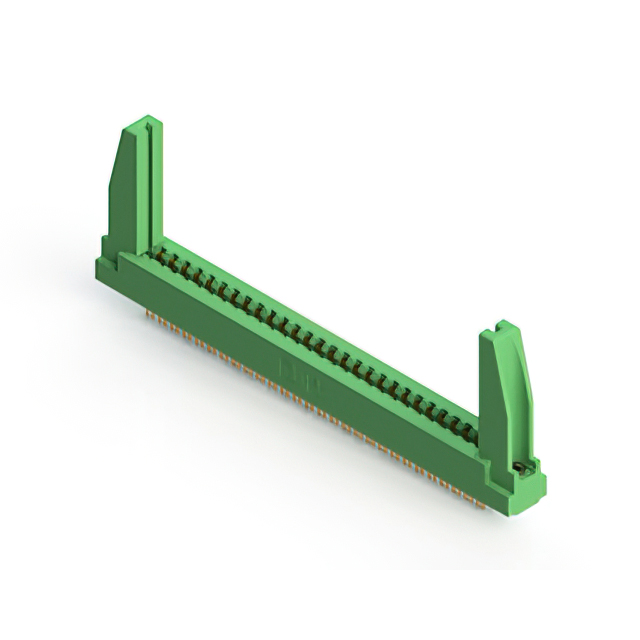

EDAC Inc. 305-056-500-278	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder Eyelet(s)	Female	Dual	56	Panel Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows
EDAC Inc. 305-056-521-508	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Panel Mount Through Hole	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows
EDAC Inc. 305-056-521-208	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Panel Mount Through Hole	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows

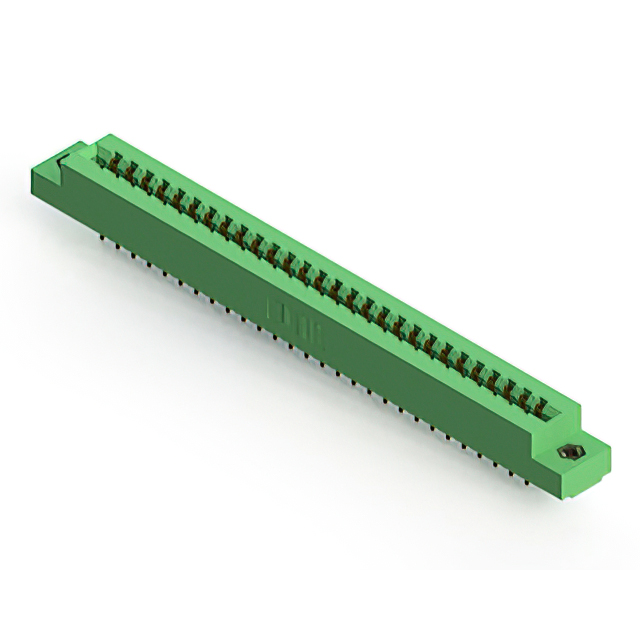

EDAC Inc. 305-056-556-208	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Board Edge Straddle Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows	Card Extender

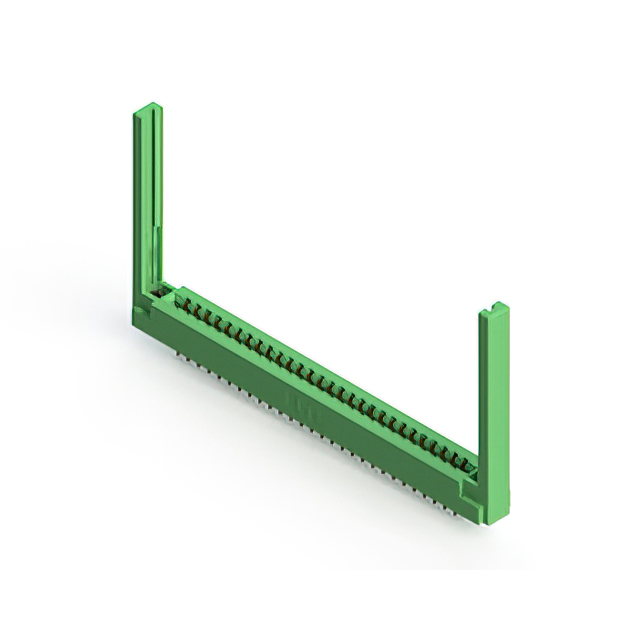

EDAC Inc. 305-056-556-568	Polyester Thermoplastic	2	Green	Copper Alloy	Non Specified - Dual Edge	28	Solder	Female	Dual	56	Board Edge Straddle Mount	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening	Gold	-40 C	105 ░C	2	Semi Bellows	Card Extender Card Guides
