2510-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

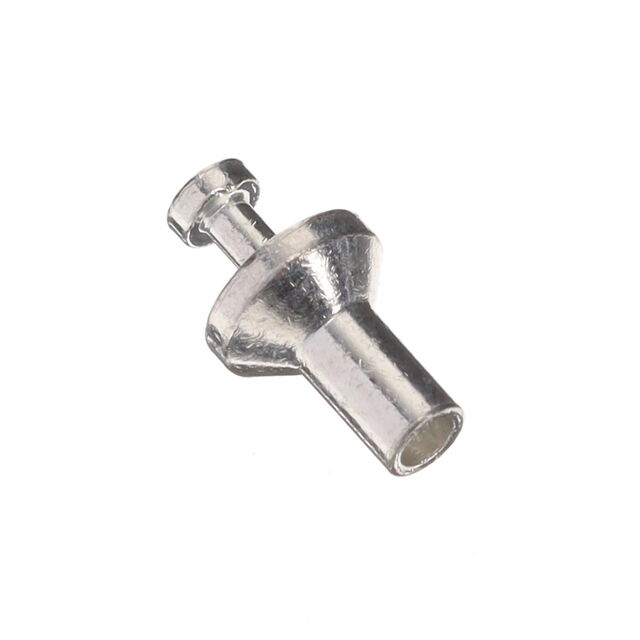

TERM TURRET SINGLE L=3.45MM
| Part | Termination | Number of Turrets | Staking Side ID | Staking Side ID | Board Thickness | Board Thickness | Flange Diameter | Flange Diameter [diameter] | Length - Above Board | Length - Above Board | Mounting Type | Terminal Type | Staking Side OD [diameter] | Staking Side OD [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Swage | Single | 1.07 mm | 0.042 in | 0.062 in | 1.57 mm | 3.18 mm | 0.125 in | 3.45 mm | 0.136 in | Through Hole | Single End | 0.06 " | 1.52 mm | 0.094 in | 2.39 mm | Non-Insulated | 1.57 mm | 0.062 in | Brass Alloy | Tin-Lead | 300 µin | 7.62 µm | 0.064 in | 1.63 mm |
Mill-Max Manufacturing Corp. | Swage | Single | 1.07 mm | 0.042 in | 0.062 in | 1.57 mm | 3.18 mm | 0.125 in | 3.45 mm | 0.136 in | Through Hole | Single End | 0.06 " | 1.52 mm | 0.094 in | 2.39 mm | Non-Insulated | 1.57 mm | 0.062 in | Brass Alloy | Silver | 300 µin | 7.62 µm | 0.064 in | 1.63 mm |
