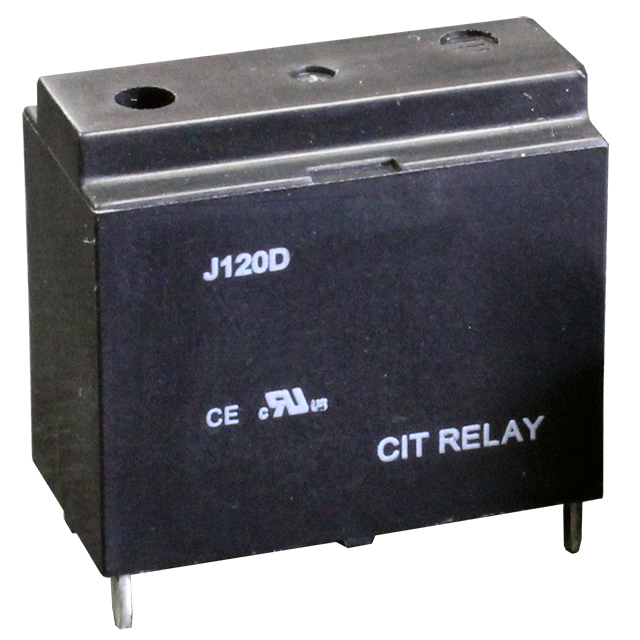

J120D1A Series

Catalog

RELAY GEN PURPOSE SPST 20A 12V

Part	Coil Resistance	Coil Type	Relay Type	Contact Material	Must Release Voltage	Load - Max Switching	Must Operate Voltage	Operate Time	Seal Rating	Contact Form	Termination Style	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Coil Current	Switching Voltage [Max]	Mounting Type	Release Time

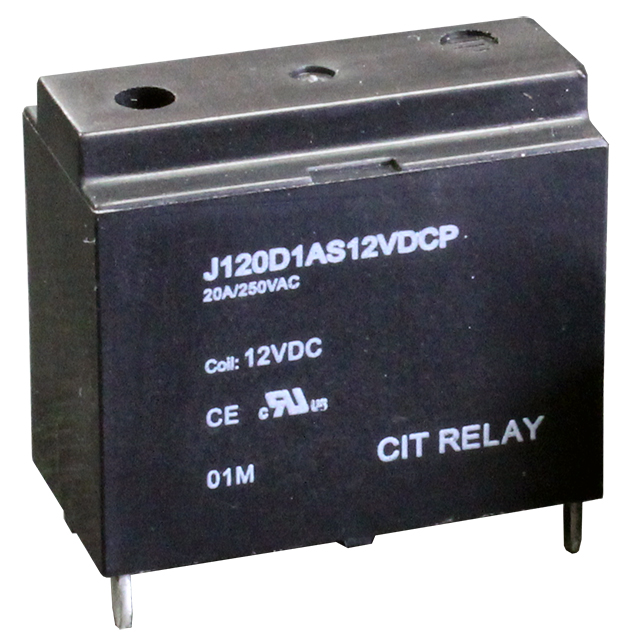

CIT Relay and Switch J120D1AS12VDCP	160 Ohms	Non Latching	General Purpose	Silver Tin Oxide (AgSnO)	1.2 VDC	6000 VA	9 VDC	20 ms	Sealed - Fully	SPST-NO (1 Form A)	PC Pin	20 A	55 °C	-30 ░C	12 VDC	0.075 A	300 VAC	Through Hole	10 ms
CIT Relay and Switch J120D1AS6VDCP	40 Ohms	Non Latching	General Purpose	Silver Tin Oxide (AgSnO)	0.6 VDC	6000 VA	4.5 VDC	20 ms	Sealed - Fully	SPST-NO (1 Form A)	PC Pin	20 A	55 °C	-30 ░C		0.15 A	300 VAC	Through Hole	10 ms
CIT Relay and Switch J120D1AC24VDC	640 Ohms	Non Latching	General Purpose	Silver Tin Oxide (AgSnO)	2.4 VDC	6000 VA	18 VDC	20 ms		SPST-NO (1 Form A)	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	55 °C	-30 ░C	24 VDC	0.0375 A	300 VAC	Through Hole	10 ms
CIT Relay and Switch J120D1AC12VDC	160 Ohms	Non Latching	General Purpose	Silver Tin Oxide (AgSnO)	1.2 VDC	6000 VA	9 VDC	20 ms		SPST-NO (1 Form A)	PC Pin Quick Connect - 0.250" (6.3mm)	20 A	55 °C	-30 ░C	12 VDC	0.075 A	300 VAC	Through Hole	10 ms

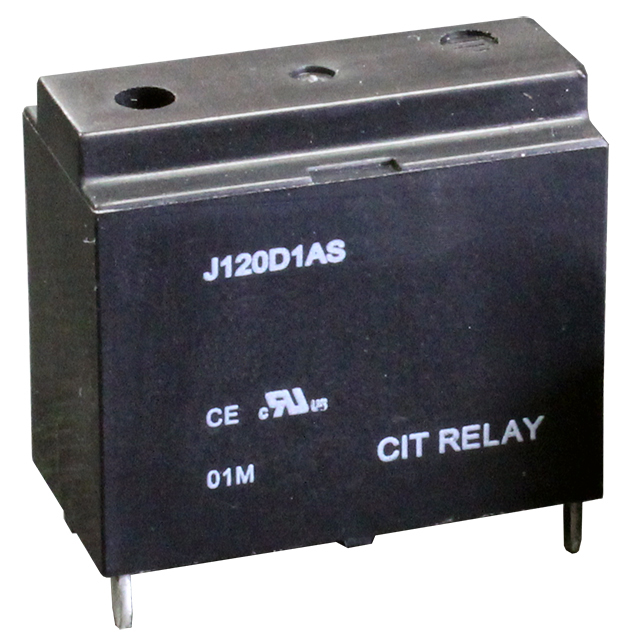

CIT Relay and Switch J120D1AS24VDCP	640 Ohms	Non Latching	General Purpose	Silver Tin Oxide (AgSnO)	2.4 VDC	6000 VA	18 VDC	20 ms	Sealed - Fully	SPST-NO (1 Form A)	PC Pin	20 A	55 °C	-30 ░C	24 VDC	0.0375 A	300 VAC	Through Hole	10 ms
