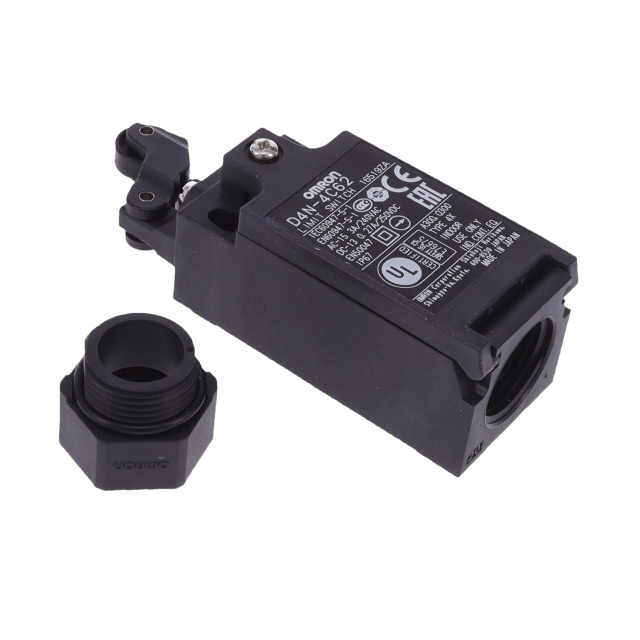

D4N4C62N Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION 3PST 3A 240V
| Part | Current Rating (Amps) | Mechanical Life | Overtravel | Overtravel | Pretravel | Pretravel | Release Force | Operating Position | Operating Position | Operating Force | Switch Function | Mounting Type | Ingress Protection | Electrical Life | Termination Style | Circuit | Voltage Rating - AC | Actuator Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 3 A 270 mA | 15000000 Cycles | 5 mm | 0.197 " | 4 mm | 0.157 in | 82 gf | 37 mm | 1.457 in | 510 gf | Off-Mom On-Mom | Chassis Mount | IP67 - Dust Tight Waterproof | 300000 Cycles | Screw Terminal | 3PST-2NC/1NO | 240 V | Lever Roller | 250 V | 70 °C | -30 ░C |
