AAA3FP Series

Catalog

XLR CONNECTOR, 3 CONTACTS, SOCKET, CABLE MOUNT, NICKEL PLATED CONTACTS, PLASTIC BODY, AAA SERIES

Part	Shielding	Shell Size - Insert	Shell Finish	Backshell Material, Plating	Connector Type	Contact Material	Orientation	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Applications	Fastening Type	Insert Material	Features	Voltage Rating	Shell Material	Color	Current Rating (Amps)	Mounting Type	Primary Material	Contact Finish - Mating	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]

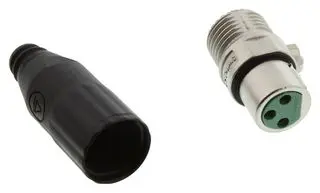

SWITCHCRAFT/CONXALL AAA3FPZ	Shielded	XLR	Nickel	Nickel Zinc Alloy	Plug Female Sockets	Copper Alloy	Keyed	2.54 mm	5.59 mm	0.22 in	0.1 "	Audio Industrial Instrumentation Medical	Latch Lock	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	125 VAC	Zinc Alloy	Silver	15 A	Free Hanging (In-Line)	Metal	Silver
SWITCHCRAFT/CONXALL AAA3FPBZ	Shielded	XLR	Chrome		Plug Female Sockets	Copper Alloy	Keyed	2.54 mm	5.59 mm	0.22 in	0.1 "	Audio Industrial Instrumentation Medical	Latch Lock	Thermoplastic	Backshell Cable Clamp Ground Strain Relief	125 VAC	Zinc Alloy	Black	15 A	Free Hanging (In-Line)	Metal	Silver	Chrome	Zinc
SWITCHCRAFT/CONXALL AAA3FPBZH	Shielded	XLR	Chrome		Plug Female Sockets	Copper Alloy	Keyed	3.81 mm	7.24 mm	0.285 in	0.15 "	Audio Instrumentation	Latch Lock	Thermoplastic	Backshell Cable Clamp Ground Strain Relief		Zinc Alloy	Black		Free Hanging (In-Line)	Metal	Silver	Chrome	Zinc	IP66 - Dust Tight Water Resistant	-40 C	65 °C
SWITCHCRAFT/CONXALL AAA3FPZH	Shielded	XLR	Nickel	Nickel Zinc Alloy	Plug Female Sockets	Copper Alloy	Keyed	3.81 mm	7.24 mm	0.285 in	0.15 "	Audio Instrumentation	Latch Lock	Thermoplastic	Backshell Cable Clamp Ground Strain Relief		Zinc Alloy	Silver		Free Hanging (In-Line)	Metal	Silver			IP66 - Dust Tight Water Resistant	-40 C	65 °C
