910-000 Series

Catalog

LED COOL WHITE 6000K 4SMD

Part	CRI (Color Rendering Index)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Test	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Package / Case	Supplier Device Package	Viewing Angle	Color	Flux @ 25°C, Current - Test	Current - Max	Size / Dimension [diameter]	Size / Dimension [diameter]

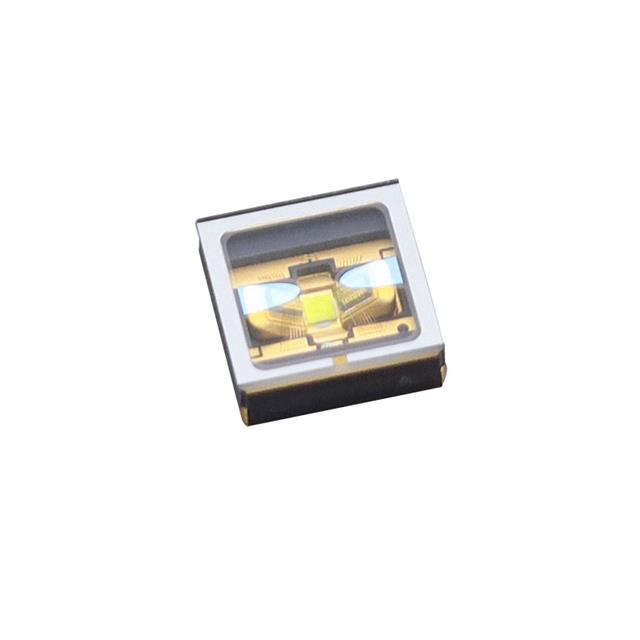

KYOCERA AVX 910-00010-WF	70	Surface Mount	2.53 mm	0.1 in	2.5 A	8.3 V	2.5 A	0.276 "	0.276 in	7 mm	7 mm	6000 K	2828 (7070 Metric)	4-SMD	120 °	Cool White	1000 lm
KYOCERA AVX 910-00016-WF	70	Surface Mount	2.53 mm	0.1 in		1.8 V 5 V		0.276 "	0.276 in	7 mm	7 mm	6000 K	2828 (7070 Metric)	4-SMD	120 °	Cool White	500 lm	1 A 2.3 A
KYOCERA AVX 910-00011-IT	70	Surface Mount	2.53 mm	0.1 in	2.5 A	8.3 V	2.5 A					6000 K	Star Array	Star Array	120 °	Cool White	1000 lm		19.9 mm	0.783 in
KYOCERA AVX 910-00014-WF	70	Surface Mount	2.53 mm	0.1 in		1.8 V 5 V		0.276 "	0.276 in	7 mm	7 mm	6000 K	2828 (7070 Metric)	4-SMD	120 °	Cool White	500 lm	1 A 2.3 A

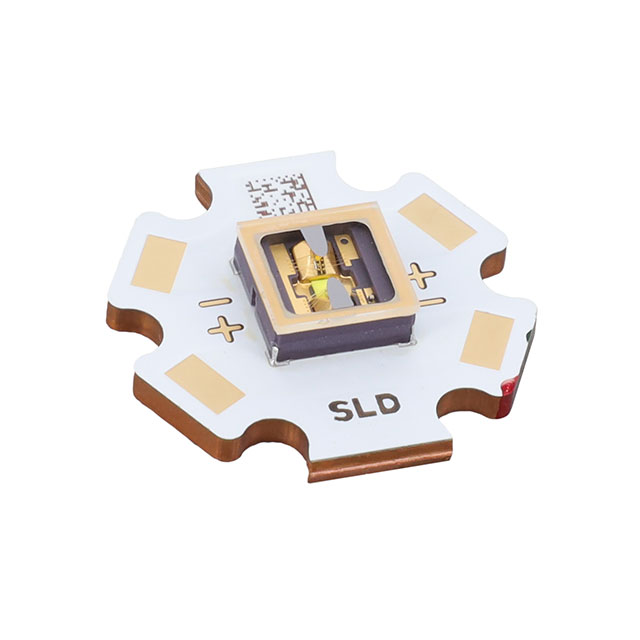

KYOCERA AVX 910-00004-IT	70	Surface Mount	2.53 mm	0.1 in	1.65 A	8.7 V	1.65 A					6000 K	Star Array	Star Array	120 °	Cool White	500 lm		19.9 mm	0.783 in
KYOCERA AVX 910-00003-WF	70	Surface Mount	2.53 mm	0.1 in	1.65 A	8.7 V	1.65 A	0.276 "	0.276 in	7 mm	7 mm	6000 K	2828 (7070 Metric)	4-SMD	120 °	Cool White	500 lm

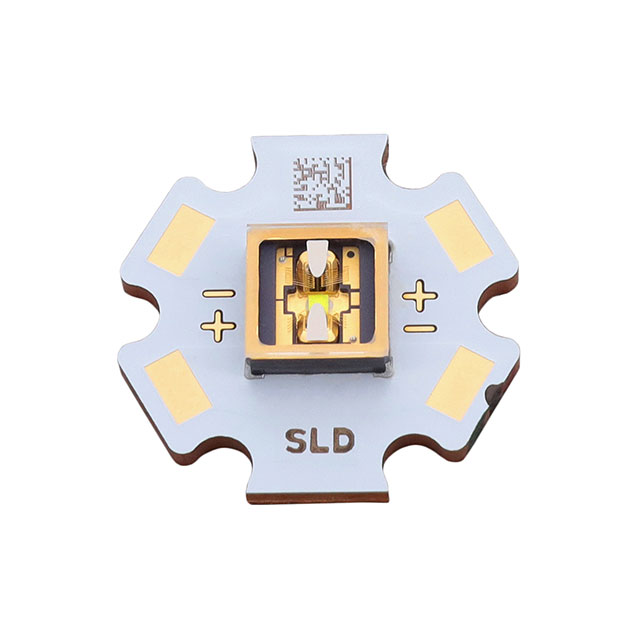

KYOCERA AVX 910-00015-IT	70	Surface Mount	2.53 mm	0.1 in		1.8 V 5 V						6000 K	Star Array	Star Array	120 °	Cool White	500 lm	1 A 2.3 A	19.9 mm	0.783 in
KYOCERA AVX 910-00010-WF	70	Surface Mount	2.53 mm	0.1 in	2.5 A	8.3 V	2.5 A	0.276 "	0.276 in	7 mm	7 mm	6000 K	2828 (7070 Metric)	4-SMD	120 °	Cool White	1000 lm
KYOCERA AVX 910-00011-IT	70	Surface Mount	2.53 mm	0.1 in	2.5 A	8.3 V	2.5 A					6000 K	Star Array	Star Array	120 °	Cool White	1000 lm		19.9 mm	0.783 in
KYOCERA AVX 910-00017-IT	70	Surface Mount	2.53 mm	0.1 in		1.8 V 5 V						6000 K	Star Array	Star Array	120 °	Cool White	500 lm	1 A 2.3 A	19.9 mm	0.783 in
