8280-4SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

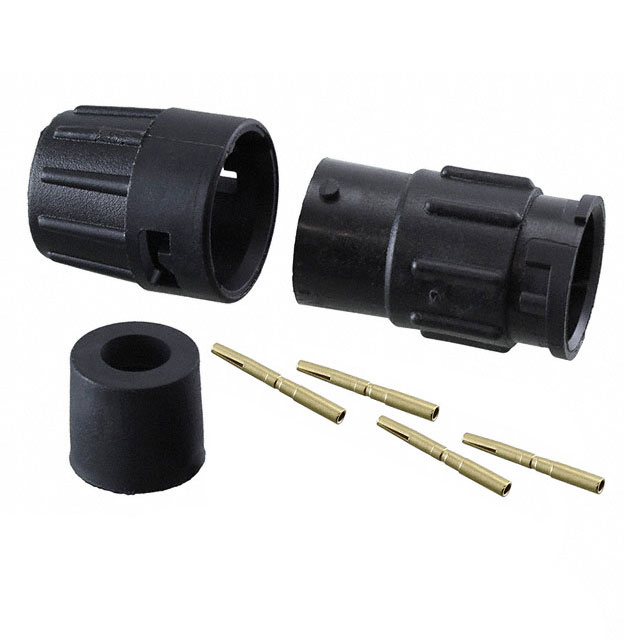

MINI-CON-X CABLE-TO-CABLE, 4-PIN #20, FEMALE, CRIMP, BULK
| Part | Orientation | Termination | Voltage Rating | Features | Current Rating (Amps) | Backshell Material, Plating | Number of Positions | Connector Type | Ingress Protection | Color | Fastening Type | Primary Material | Contact Finish - Mating | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Contact Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Shielding | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 3.81 mm | 0.15 " | 4.32 mm | 0.17 in | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | |
SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 4.06 mm | 0.16 " | 4.57 mm | 0.18 " | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | |
SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 3.3 mm | 0.13 " | 3.81 mm | 0.15 in | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | |
 SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 2.29 mm | 0.09 in | 0.14 in | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | 3.56 mm | |
SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 5.59 mm | 0.22 in | 6.35 mm | 0.25 in | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | |
 SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | 5.33 mm | 0.21 in | 5.84 mm | 0.23 in | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded | |
 SWITCHCRAFT/CONXALL | Keyed | Crimp | 600 V | Backshell | Varies by Wire Gauge | Nylon Polyamide (PA) | 4 | Receptacle Female Sockets | Weathertight | Black | Bayonet Lock | Plastic | Gold | Brass | Free Hanging (In-Line) | 115 °C | -40 C | Automotive Communication Systems Instrumentation | Unshielded |
